Spectrum preview
Title

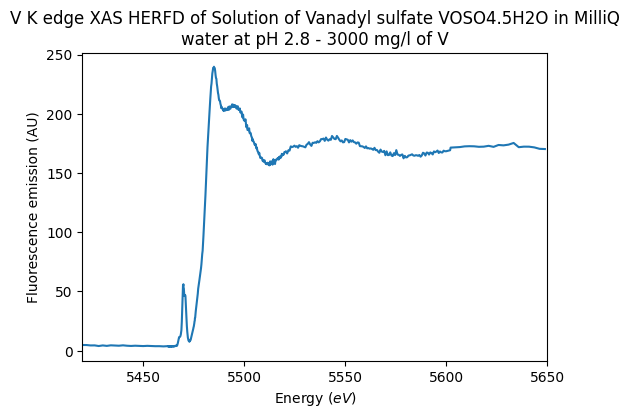

V K edge XAS HERFD of Solution of Vanadyl sulfate VOSO4.5H2O in MilliQ water at pH 2.8 - 3000 mg/l of V
Database
Experiment type
laboratory measurement
Spectrum type
fluorescence emission
Version
#1 (2022-07-04 12:22:01+0000 UTC)
Instrument parameters
Instrument
High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
Spectral observation mode
spectrum
Valid spectral range(s)
5420.0 - 5650.0 eV
Observation geometry
directional :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Frozen solution of Vanadyl sulfate VOSO4.xH2O solution at pH 2.8 ~ 3000 mg/l of V
Origin
laboratory
Texture
compact glassy
Thickness
2.0 ± 0.2 mm
Temperature
10.0 K
Fluid
References
Data reference
Chaurand, Perrine; Couturier, Julien; Levard, Clément; De Pao Mendonca, Kassandra (2021): V K edge XAS HERFD of V reference compounds 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_PC_20220301_001
