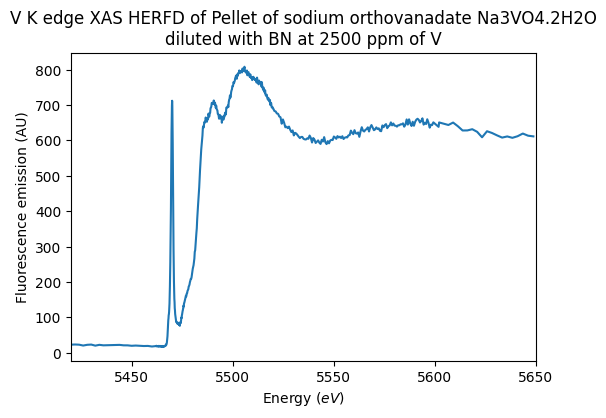

Spectrum preview
Title
V K edge XAS HERFD of Pellet of sodium orthovanadate Na3VO4.2H2O diluted with BN at 2500 ppm of V
Database
Experiment type
laboratory measurement
Spectrum type
fluorescence emission
Version
#1 (2022-07-04 12:22:01 UTC+0000)
Instrument parameters
Instrument
High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
Spectral observation mode
spectrum
Valid spectral range(s)
5420.0 - 5650.0 $eV$
Observation geometry
directional :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of Sodium orthovanadate Na3VO4.2H2O mixed with BN
Origin
commercial
Texture
compact poor grained
Thickness
2.0 $\pm$ 0.5 $mm$
Temperature
10.0 $\pm$ 278.15 $K$
Fluid
References
Data reference
Chaurand, Perrine; Couturier, Julien; Levard, Clément; De Pao Mendonca, Kassandra (2021): V K edge XAS HERFD of V reference compounds 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_PC_20220301_001
