Spectrum preview
Title

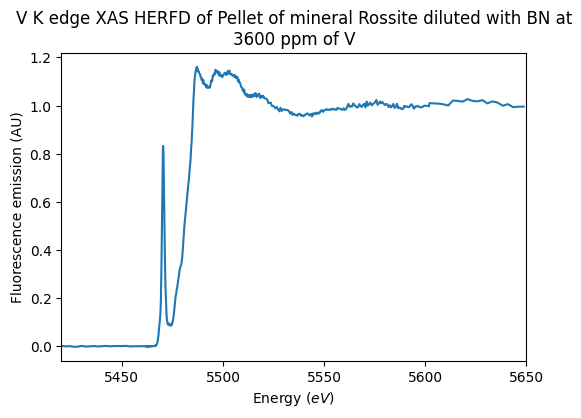

V K edge XAS HERFD of Pellet of mineral Rossite diluted with BN at 3600 ppm of V
Database
Experiment type
laboratory measurement
Spectrum type
fluorescence emission
Version
#1 (2022-07-04 12:22:01 UTC+0000)
Instrument parameters
Instrument
High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
Spectral observation mode
spectrum
Valid spectral range(s)
5420.0 - 5650.0 $eV$
Observation geometry
directional :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of Rossite mineral of V(V), CaV2O6.H2O mixed with BN
Origin
natural terrestrial
Texture
compact poor grained
Thickness
2.0 $\pm$ 0.5 $mm$
Temperature
10.0 $\pm$ 278.15 $K$
Fluid
References
Data reference
Chaurand, Perrine; Couturier, Julien; Levard, Clément; De Pao Mendonca, Kassandra (2021): V K edge XAS HERFD of V reference compounds 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_PC_20220301_001
