Spectrum
Title
Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 51.03h
Unit
Scale
Wavenumber:   Intensity:

You can paste the data VOTable URL directly into a VO-compliant software, ie. : (limited support)

-or-

Use SAMP protocol over TLS:

Notice : This requires SAMP TLS Hub to be launched on your computer. Right-click and save the file, then launch it with the following command :

java -jar tlshub.jar

Database
Experimentalists
Type
reflectance
Comments
In the reduced data set, absolute uncertainty on the calibrated reflectance factor is ±0.1, and the spatial variability of the reflectance across the field of view is of the order of 10%. Thus, the SCITEAS imaging system does not provide a very accurate measurement of the absolute reflectance, but it provides a spectrum resolved in wavelength from 0.4 to 2.4 μm.
Instrument
SCITEAS Imaging System
Sample holder
Aluminum sample holder, rectangular 120x60 mm with a thickness of 20mm, equipped with PT100 temperature sensors
Standard medium
air
Spectral range type(s)
Vis, NIR
Valid spectral range(s)
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge
#1 0.38 - 0.96 0.02 0.015
#2 0.96 - 2.3 0.01 0.03
Scan number
1
Emergence angle(s)
13.0°
Azimuth angle(s)
0.0°
Comments
The light beam emitted from the extremity of the fibre bundle positionned about 300 mm above the sample surface has a divergence half-angle of 12.7°. The light source incidence and azimuth angles are slightly variable from pixel to pixel.
Observation mode
roi averaged
Comments
Note to the provider: Complete the "image" observation_mode when fully implemented in SSHADE. Because SCITEAS data are hyperspectral images.
Name
Sublimation mantle of Smectite on Water ice and Smectite intra-mixture particles 67±31 μm
Changes

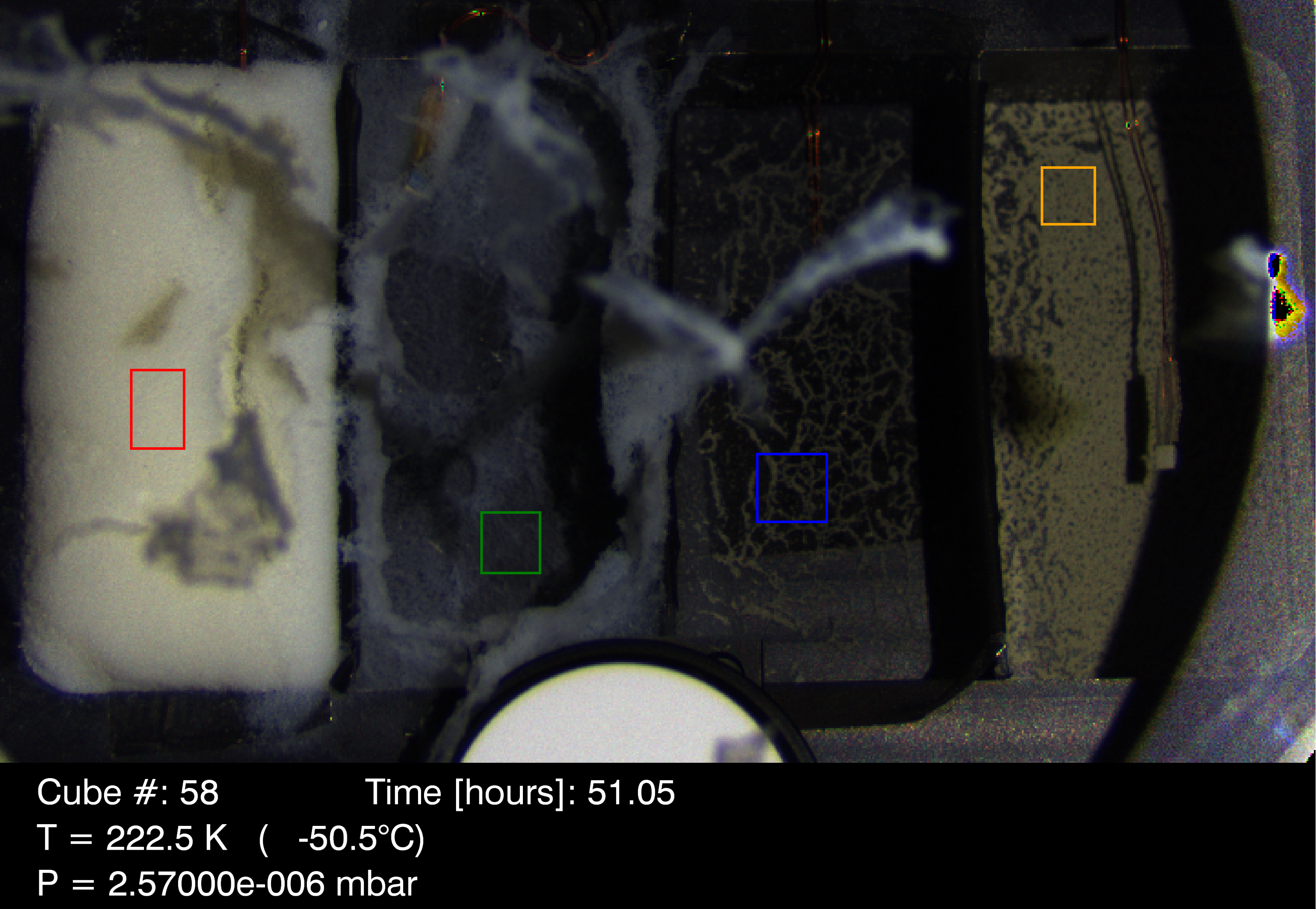

After 51.03h of sublimation, a desiccated layer made of pure smectite, about 13.78±1.02 mm thick, covers the ice particles.
Primary material(s)
Experiment
Vis-NIR reflectance spectra of the sublimation of Water ice particles containing 1 wt.% Smectite in intra-mixture
Date begin
2014-08-01
Version (Date)
#1 (2018-02-09 00:11:05)
History
new reflectance spectrum
Analysis
White Spectralon (99%) plates (Labsphere) were used as external and internal calibration standards.
Quality flag
4
