Spectrum preview
Title

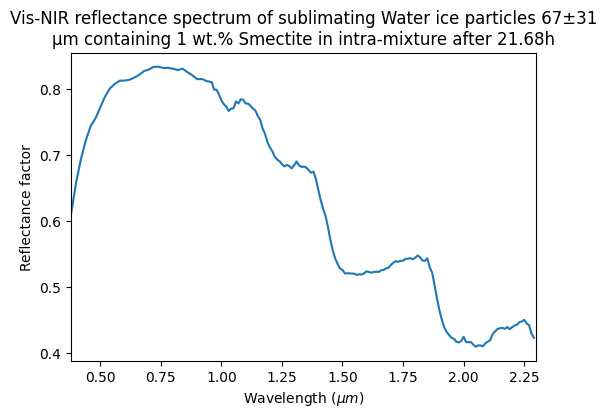

Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 21.68h
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2018-02-09 00:02:05 UTC+0000)
Instrument parameters
Instrument
SCITEAS Imaging System
Spectral observation mode
spectrum
Valid spectral range(s)
0.38 - 0.96 ${\mu}m$ ; 0.96 - 2.3 ${\mu}m$
Observation geometry
biconical : e=13.0°; ; az=0.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
Sublimation mantle of Smectite on Water ice and Smectite intra-mixture particles 67±31 μm
Origin
laboratory
Texture
other, loose granular
Temperature
209.0 $K$
Irradiated by
  • MIR photons
References
Data reference
Poch, Olivier (2014): Vis-NIR reflectance spectrum of sublimating Water ice particles 67±31 μm containing 1 wt.% Smectite in intra-mixture after 21.68h. Version 1. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data.
Publications
