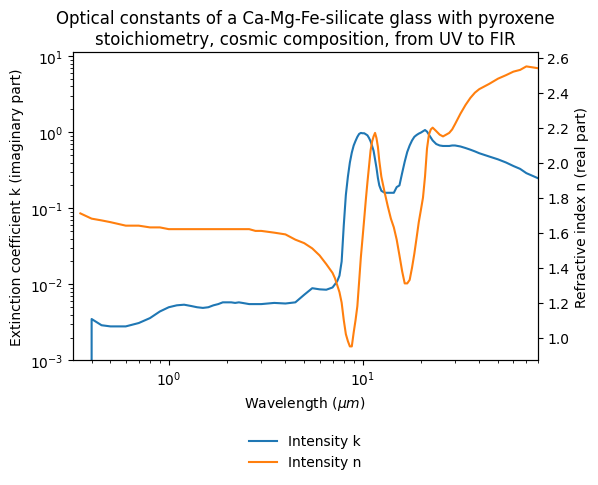

Spectrum preview

Title

Optical constants of a Ca-Mg-Fe-silicate glass with pyroxene stoichiometry, cosmic composition, from UV to FIR

Database

Experiment type

laboratory measurement

Spectrum type

optical constants

Version

#1 (2017-10-25 13:29:31+0000 UTC)

Instrument parameters

Instrument: Lambda 19 – transmission vis
Spectral observation mode: spectrum
Valid spectral range(s): 0.319 - 0.86 ${\mu}m$
Spatial observation mode: single spot

Instrument parameters

Instrument: Lambda 19 – transmission NIR
Spectral observation mode: spectrum
Valid spectral range(s): 0.86 - 3.2 ${\mu}m$
Spatial observation mode: single spot

Instrument parameters

Instrument: BRUKER 113v – reflection Near-IR
Spectral observation mode: spectrum
Valid spectral range(s): 1.0 - 2.0 ${\mu}m$
Observation geometry: specular : i=12.0° ; e=12.0° ph=0.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Instrument parameters

Instrument: BRUKER 113v – transmission Mid-IR
Spectral observation mode: spectrum
Valid spectral range(s): 2.0 - 25.0 ${\mu}m$
Spatial observation mode: single spot

Instrument parameters

Instrument: BRUKER 113v – reflection Mid-IR
Spectral observation mode: spectrum
Valid spectral range(s): 2.0 - 25.0 ${\mu}m$
Observation geometry: specular : i=12.0° ; e=12.0° ph=0.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Instrument parameters

Instrument: BRUKER 113v – reflection Far-IR
Spectral observation mode: spectrum
Valid spectral range(s): 15.0 - 80.0 ${\mu}m$
Observation geometry: specular : i=12.0° ; e=12.0° ph=0.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: Generic sample for Ca-Mg-Fe-silicate glass with pyroxene stoichiometry, cosmic composition, for combined R and T spectroscopy
Texture: compact glassy
Temperature: 300.0 $\pm$ 5.0 $K$

References

Data reference: Jäger, Cornelia; Mutschke, Harald; Begemann, Birgit; Dorschner, Johann; Henning, Thomas (1993): Optical constants from UV to FIR for a silicate glass of cosmic composition. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_HM_20171017_001
