Title: Optical constants from UV to FIR for a silicate glass of cosmic composition

DOI

10.26302/SSHADE/EXPERIMENT_HM_20171017_001

Data reference

Jäger, Cornelia; Mutschke, Harald; Begemann, Birgit; Dorschner, Johann; Henning, Thomas (1993): Optical constants from UV to FIR for a silicate glass of cosmic composition. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_HM_20171017_001

Publications

Jäger et al., 1994, Astron. Astrophys., 292, 641 - 655

Owner

Database(s)

DOCCD

Experimentalists

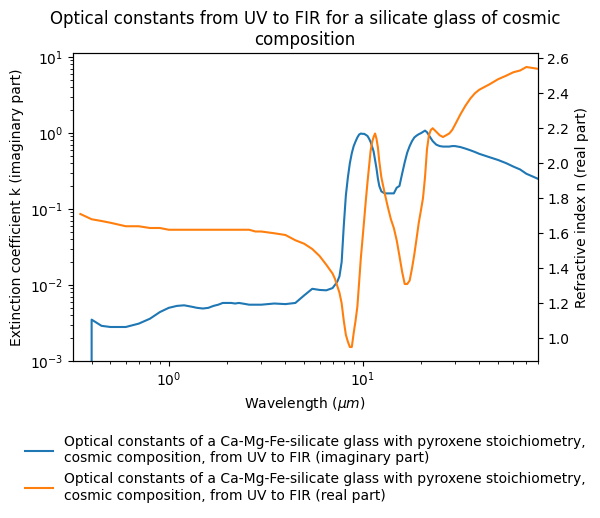

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1

Variable parameters

Variable type(s)

Location

Laboratory: Astrophysical Institute and University Observatory Jena (AIU)

Instrument #1

Instrument: Lambda 19 – transmission vis

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

Vis

Valid spectral range(s)

	Min - Max ( ${\mu}m$ )	Sampling ( ${\mu}m$ )	Resolution ( ${\mu}m$ )	Position accuracy ( ${\mu}m$ )	Absorption edge
#1	0.319 - 0.86		1.0

Angular parameters

Resolution illumination: 6.0°
Resolution observation: 6.0°

Polarization parameters

Illumination

Type of polarization: no

Observation

Type of polarization: no

Spatial parameters

Observation mode: single spot
Spatial resolution: 5.0 $mm$

Instrument #2

Instrument: Lambda 19 – transmission NIR

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

NIR

Valid spectral range(s)

	Min - Max ( ${\mu}m$ )	Sampling ( ${\mu}m$ )	Resolution ( ${\mu}m$ )	Position accuracy ( ${\mu}m$ )	Absorption edge
#1	0.86 - 3.2

Angular parameters

Resolution illumination: 6.0°
Resolution observation: 6.0°

Polarization parameters

Illumination

Type of polarization: no

Observation

Type of polarization: no

Spatial parameters

Observation mode: single spot
Spatial resolution: 5.0 $mm$

Instrument #3

Instrument: BRUKER 113v – reflection Near-IR

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

NIR

Valid spectral range(s)

	Min - Max ( ${\mu}m$ )	Sampling ( ${\mu}m$ )	Resolution ( ${\mu}m$ )	Position accuracy ( ${\mu}m$ )	Absorption edge
#1	1.0 - 2.0

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).

Observation geometry: specular
Observation mode: fixed angles
Incidence angle: 12.0°
Emergence angle: 12.0°
Phase angle: 0.0°
Resolution illumination: 6.0°
Resolution observation: 6.0°

Polarization parameters

Illumination

Type of polarization: no

Observation

Type of polarization: no

Spatial parameters

Observation mode: single spot
Spatial resolution: 5.0 $mm$

Instrument #4

Instrument: BRUKER 113v – transmission Mid-IR

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

MIR

Valid spectral range(s)

	Min - Max ( ${\mu}m$ )	Sampling ( ${\mu}m$ )	Resolution ( ${\mu}m$ )	Position accuracy ( ${\mu}m$ )	Absorption edge
#1	2.0 - 25.0

Angular parameters

Resolution illumination: 6.0°
Resolution observation: 6.0°

Polarization parameters

Illumination

Type of polarization: no

Observation

Type of polarization: no

Spatial parameters

Observation mode: single spot
Spatial resolution: 5.0 $mm$

Instrument #5

Instrument: BRUKER 113v – reflection Mid-IR

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

MIR

Valid spectral range(s)

	Min - Max ( ${\mu}m$ )	Sampling ( ${\mu}m$ )	Resolution ( ${\mu}m$ )	Position accuracy ( ${\mu}m$ )	Absorption edge
#1	2.0 - 25.0

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).

Observation geometry: specular
Observation mode: fixed angles
Incidence angle: 12.0°
Emergence angle: 12.0°
Phase angle: 0.0°
Resolution illumination: 6.0°
Resolution observation: 6.0°

Polarization parameters

Illumination

Type of polarization: no

Observation

Type of polarization: no

Spatial parameters

Observation mode: single spot
Spatial resolution: 5.0 $mm$

Instrument #6

Instrument: BRUKER 113v – reflection Far-IR

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

FIR

Valid spectral range(s)

	Min - Max ( ${\mu}m$ )	Sampling ( ${\mu}m$ )	Resolution ( ${\mu}m$ )	Position accuracy ( ${\mu}m$ )	Absorption edge
#1	15.0 - 80.0

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).

Observation geometry: specular
Observation mode: fixed angles
Incidence angle: 12.0°
Emergence angle: 12.0°
Phase angle: 0.0°
Resolution illumination: 6.0°
Resolution observation: 6.0°

Polarization parameters

Illumination

Type of polarization: no

Observation

Type of polarization: no

Spatial parameters

Observation mode: single spot
Spatial resolution: 5.0 $mm$

History

Date begin: 1993-01-01

Versions

Release date: 2018-01-31 23:51:01+0000 UTC
Version (Date): #1 (2018-01-31 23:51:01+0000 UTC, Updated: 2019-07-08 09:09:28+0000 UTC)
