Sample
Name
Numerical sample consisting of crystalline H2O ice spherical particles (67 µm average diameter), packed to a semi-infinite medium with volume fraction of 0.5
Database
Experimentalists
Date
2025-11-01
Provider
Planetary Ice Laboratory, Space and Planetary Science division, Physics Institute, University of Bern

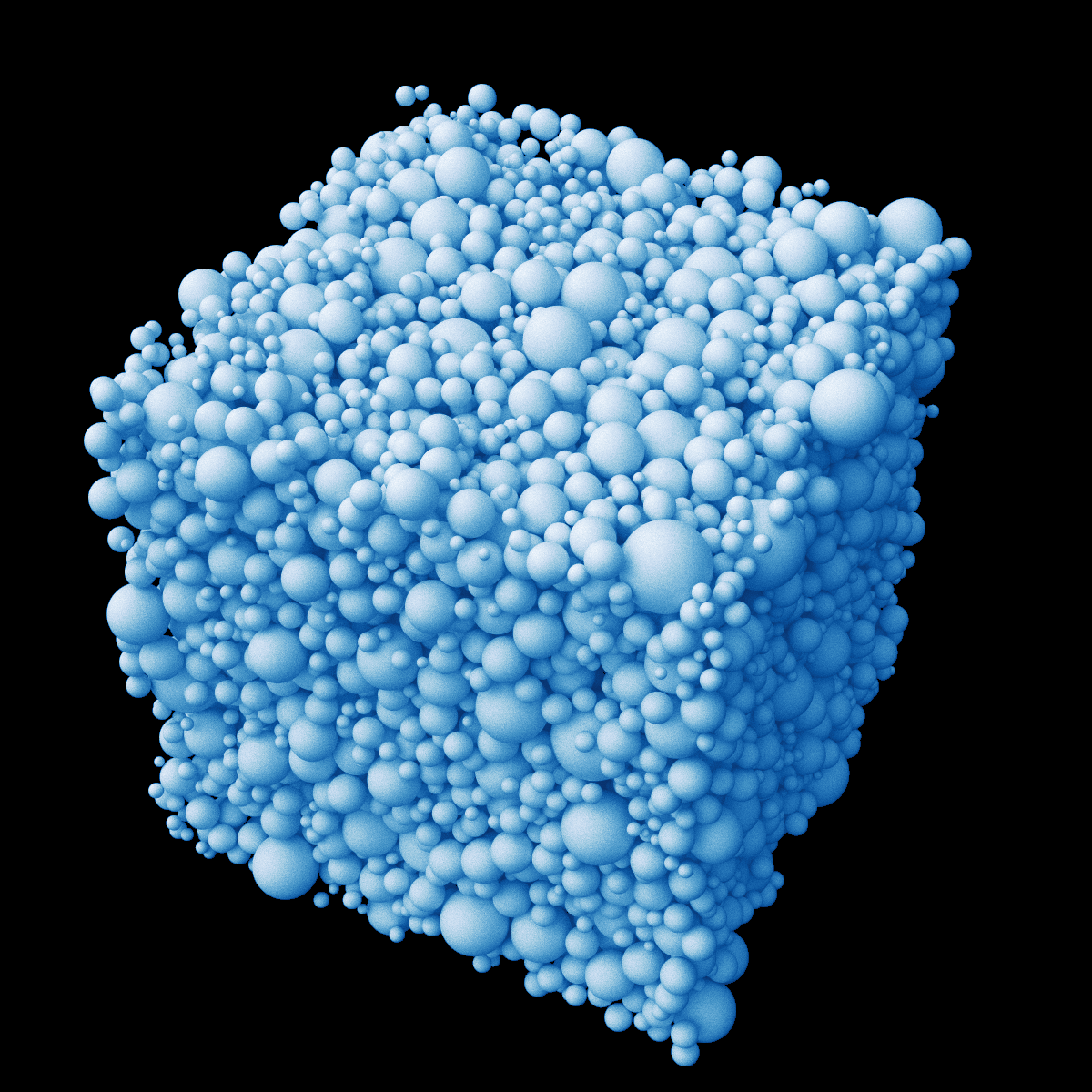

Rendering of simulated microstructure of the sample, showing the packed spherical particles. The cube is repeated 600x to approximate a semi-infinite medium. The average diameter of the particles is 67 µm, and the cube side length is 1.75 mm.
The particle size distribution for the sample, taken from a measured SPIPA-B distribution with an average diameter of 67 µm.
Physical characteristics
Thickness
1050.0 $\pm$ 1.0 $mm$
Diameter
1050.0 $mm$
Surface roughness
smooth
Substrate material
Vacuum
Temperature
100.0 $\pm$ 1.0 $K$
Temperature max
101.0 $K$
Type
vacuum
Fluid temperature
100.0 $\pm$ 1.0 $K$
Fluid pressure
0.0e+00 $mbar$
Time at T, P, pH
0.0 $s$
Comments
Vacuum with refractive index $\\eta=1+0i$
Publications
Number
1
Layers
