- Title

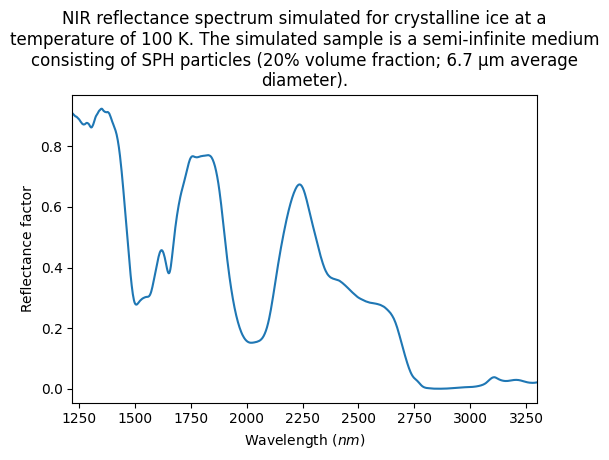

- NIR reflectance spectrum simulated for crystalline ice at a temperature of 100 K. The simulated sample is a semi-infinite medium consisting of SPH particles (20% volume fraction; 6.7 µm average diameter).
- Database
- Experiment type
- numerical modeling
- Spectrum type
- reflectance factor
- Version
- #1 (2026-03-11 19:39:42+0000 UTC)
- Instrument
- PhotonTracer - GPU accelerated light-scattering simulation in the geometric optics limit
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 380.0 - 1190.0 $nm$ ; 1220.0 - 3300.0 $nm$
- Observation geometry
- directional-conical : i=0.0° ; e=25.0° ; az=0.0° ; ph=25.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Numerical sample consisting of crystalline H2O ice spherical particles (6.6 µm average diameter), packed to a semi-infinite medium with volume fraction of 0.2
- Origin
- simulated
- Texture
- loose fine grained
- Thickness
- 144.0 $\pm$ 1.0 $mm$
- Temperature
- 100.0 $\pm$ 1.0 $K$
References
- Data reference
- Ottersberg, Rafael (2025): Vis-NIR reflectance spectra simulated for crystalline H2O ice. The simulated sample is a semi-infinite medium consisting of particles with varying shape, size, density and temperature.. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RO_20251101_000
