- Title

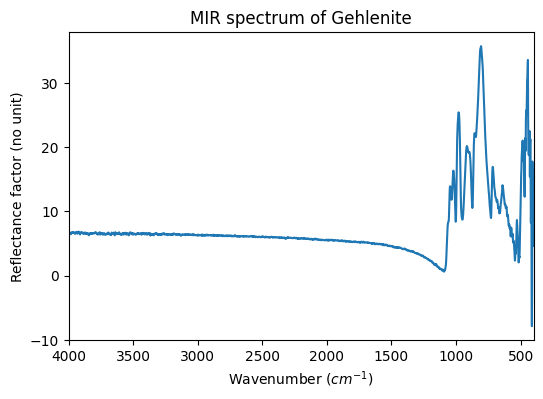

- MIR spectrum of Gehlenite
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2024-12-04 17:34:18 UTC+0000)
- Instrument
- SMIS NEXUS 6700 - confocal reflexion Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 4000.0 $cm^{-1}$
- Observation geometry
- confocal : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- polished section of Gehlenite
- Texture
- compact crystal
- Thickness
- 3.0 $\pm$ 100.0 $mm$
- Temperature
- 298.0 $\pm$ 5.0 $K$
References
- Data reference
- Charlier, Jean (2023): MIR reflectance spectra of mineral standards. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20241126_01
