Spectrum preview
Title

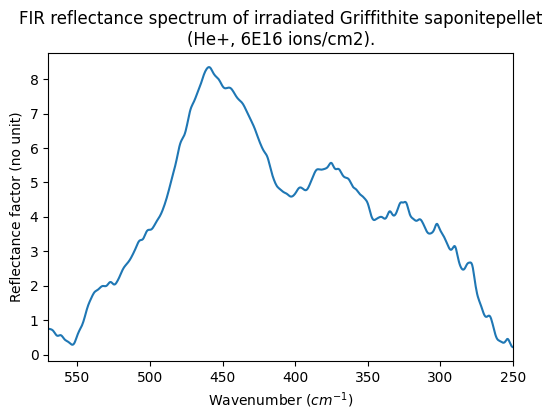

FIR reflectance spectrum of irradiated Griffithite saponitepellet (He+, 6E16 ions/cm2).
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-01-03 14:29:59+0000 UTC)
Instrument parameters
Instrument
SMIS NEXUS 6700 - confocal reflexion Far-IR
Spectral observation mode
spectrum
Valid spectral range(s)
250.0 - 570.0 cm1
Observation geometry
specular : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pellet of Saponite Griffithite
Texture
compact fine grained
Thickness
600.0 ± 100.0 μm
Temperature
300.0 ± 5.0 K
Irradiated by
  • atomic ions , 40.0 keV.particle1
References
Data reference
Rubino, Stefano; Brunetto, Rosario; Lantz, Cateline (2020): FIR spectra of phyllosilicate pellets irradiated by He+ and Ar+ ions. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20230103_02
Publications
