- Instrument
- SMIS NEXUS 6700 - confocal reflexion Far-IR
- Spectral observation mode

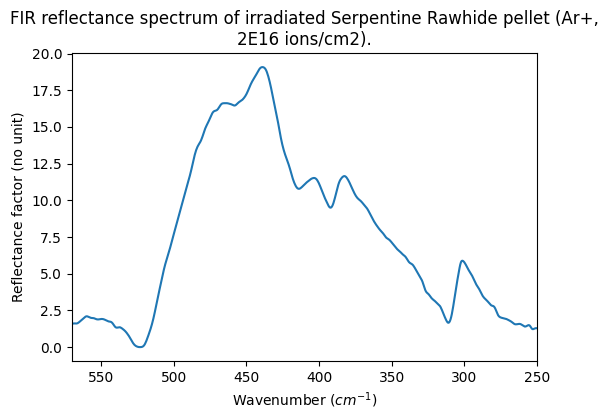

- spectrum
- Valid spectral range(s)
- 250.0 - 570.0 $cm^{-1}$
- Observation geometry
- specular : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pellet of Serpentine Rawhide
- Texture
- compact fine grained
- Thickness
- 600.0 $\pm$ 100.0 ${\mu}m$
- Temperature
- 300.0 $\pm$ 5.0 $K$
- Irradiated by
-
- atomic ions , 40.0 $keV.particle^{-1}$
References
- Data reference
- Rubino, Stefano; Brunetto, Rosario; Lantz, Cateline (2020): FIR spectra of phyllosilicate pellets irradiated by He+ and Ar+ ions. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20230103_02
- Publications
