- Title

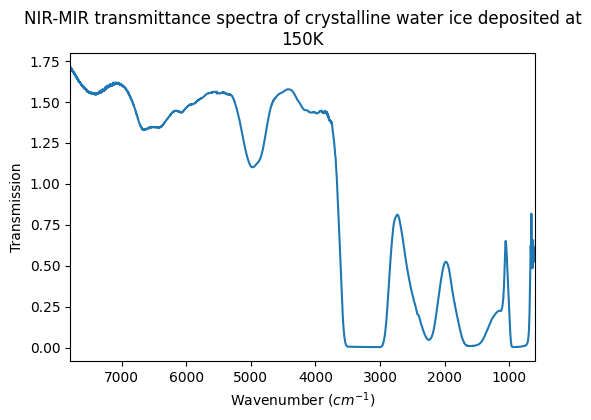

- NIR-MIR transmittance spectra of crystalline water ice deposited at 150K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2017-07-26 14:33:42 UTC+0000)
- Instrument
- Bruker Tensor - transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 601.0 - 7800.0 $cm^{-1}$
- Observation geometry
- direct : i=10.0° ; e=190.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- crystalline water ice, ~35 micron thick deposited at 150K
- Origin
- laboratory
- Texture
- compact crystal
- Thickness
- 35.0 $\pm$ 5.0 ${\mu}m$
- Temperature
- 150.0 $\pm$ 0.1 $K$
References
- Data reference
- Brunetto, Rosario (2016): NIR-MIR transmittance spectra of crystalline water ice deposited at 150K and then cooled at 40K. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RB_20160422_001
