Title: NIR-MIR transmittance spectra of crystalline water ice deposited at 150K and then cooled at 40K

DOI: 10.26302/SSHADE/EXPERIMENT_RB_20160422_001
Data reference: Brunetto, Rosario (2016): NIR-MIR transmittance spectra of crystalline water ice deposited at 150K and then cooled at 40K. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RB_20160422_001

Database(s)

Experimentalists

Rosario Brunetto

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 2

Variable parameters

Variable type(s)

temperature

Laboratory: Institut d'Astrophysique Spatiale (IAS)

Instrument: Bruker Tensor - transmission Mid-IR
Sample holder: ZnSe window cooled by He cryostat in vacuum chamber

Spectral parameters

Standard medium

vacuum

Observation mode

spectrum

Spectral range type(s)

NIR, MIR

Valid spectral range(s)

	Min - Max ( $cm^{-1}$ )	Sampling ( $cm^{-1}$ )	Resolution ( $cm^{-1}$ )	Position accuracy ( $cm^{-1}$ )	Absorption edge
#1	601.0 - 7800.0	0.482141	1.0

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).

Observation geometry: direct
Observation mode: fixed angles
Incidence angle: 10.0°
Emergence angle: 190.0°

Comments: Transmission measurement at 10 deg angle with respect to the normal

Spatial parameters

Observation mode: single spot
Image size: 4000.0 x 4000.0 ${\mu}m$

Date begin - end: 2016-04-22 - 2016-04-22

Versions

Release date: 2018-01-31 23:51:01+0000 UTC
Version (Date): #1 (2018-01-31 23:51:01+0000 UTC, Updated: 2019-10-26 11:28:33+0000 UTC)

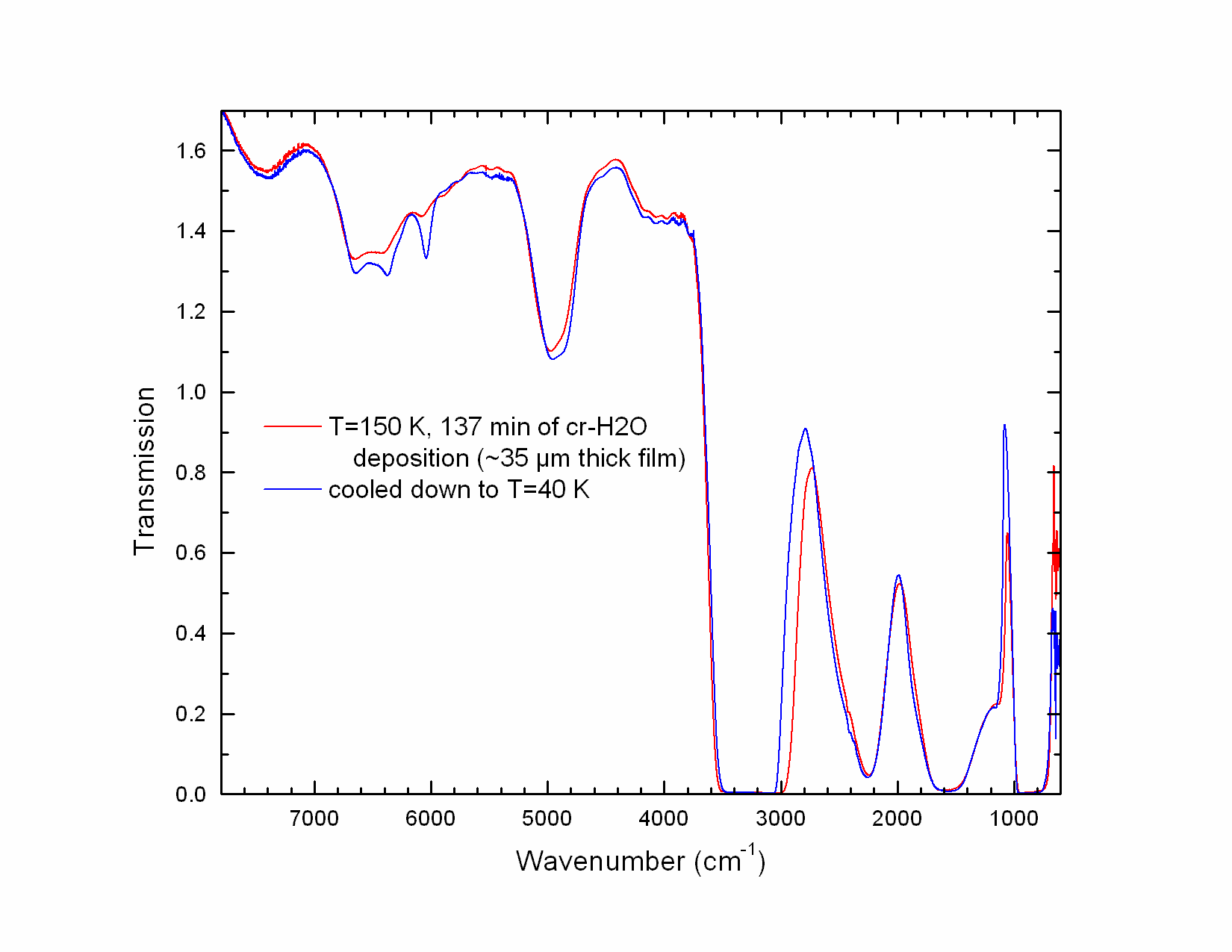

Transmission spectra of crystalline water ice film at different temperatures
