MIR spectra of water ice (thickness = 190 nm) collected before irradiation with Mg^7+ (E = 105 keV) at T = 100 K | GhoSST | SSHADE

Experiment MIR spectra collected before and after irradiation experiments (with different ions at varying energy) of crystalline water ice at temperature from 20 K to 120 K

Sub-Experiment $Mg^7+$ E=105 keV

Sub-Experiment irradiation at T = 90 K - thickness = 161 nm

Spectrum MIR spectra of water ice (thickness = 161 nm) collected before irradiation with $Mg^7+$ (E = 105 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 161 nm) collected after irradiation with $Mg^7+$ (E = 105 keV) at T = 90 K

Sub-Experiment irradiation at T = 90 K - thickness = 130 nm

Spectrum MIR spectra of water ice (thickness = 130 nm) collected before irradiation with $Mg^7+$ (E = 105 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 130 nm) collected after irradiation with $Mg^7+$ (E = 105 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 190 nm

Spectrum MIR spectra of water ice (thickness = 190 nm) collected before irradiation with $Mg^7+$ (E = 105 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 190 nm) collected after irradiation with $Mg^7+$ (E = 105 keV) at T = 100 K

Sub-Experiment irradiation at T = 100 K - thickness = 131 nm

Spectrum MIR spectra of water ice (thickness = 131 nm) collected before irradiation with $Mg^7+$ (E = 105 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 131 nm) collected after irradiation with $Mg^7+$ (E = 105 keV) at T = 100 K

Sub-Experiment irradiation at T = 100 K - thickness = 69 nm

Spectrum MIR spectra of water ice (thickness = 69 nm) collected before irradiation with $Mg^7+$ (E = 105 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 69 nm) collected after irradiation with $Mg^7+$ (E = 105 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 151 nm

Spectrum MIR spectra of water ice (thickness = 151 nm) collected before irradiation with $Mg^7+$ (E = 105 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 151 nm) collected after irradiation with $Mg^7+$ (E = 105 keV) at T = 110 K

Sub-Experiment $Mg^5+$ E=56 keV

Sub-Experiment irradiation at T = 20 K - thickness = 78 nm

Spectrum MIR spectra of water ice (thickness = 78 nm) collected before irradiation with $Mg^5+$ (E = 56 keV) at T = 20 K Spectrum MIR spectra of water ice (thickness = 78 nm) collected after irradiation with $Mg^5+$ (E = 56 keV) at T = 20 K

Sub-Experiment irradiation at T = 40 K - thickness = 81 nm

Spectrum MIR spectra of water ice (thickness = 81 nm) collected before irradiation with $Mg^5+$ (E = 56 keV) at T = 40 K Spectrum MIR spectra of water ice (thickness = 81 nm) collected after irradiation with $Mg^5+$ (E = 56 keV) at T = 40 K

Sub-Experiment irradiation at T = 60 K - thickness = 74 nm

Spectrum MIR spectra of water ice (thickness = 74 nm) collected before irradiation with $Mg^5+$ (E = 56 keV) at T = 60 K Spectrum MIR spectra of water ice (thickness = 74 nm) collected after irradiation with $Mg^5+$ (E = 56 keV) at T = 60 K

Sub-Experiment irradiation at T = 80 K - thickness = 82 nm

Spectrum MIR spectra of water ice (thickness = 82 nm) collected before irradiation with $Mg^5+$ (E = 56 keV) at T = 80 K Spectrum MIR spectra of water ice (thickness = 82 nm) collected after irradiation with $Mg^5+$ (E = 56 keV) at T = 80 K

Sub-Experiment irradiation at T = 90 K - thickness = 82 nm

Spectrum MIR spectra of water ice (thickness = 82 nm) collected before irradiation with $Mg^5+$ (E = 56 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 82 nm) collected after irradiation with $Mg^5+$ (E = 56 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 97 nm

Spectrum MIR spectra of water ice (thickness = 97 nm) collected before irradiation with $Mg^5+$ (E = 56 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 97 nm) collected after irradiation with $Mg^5+$ (E = 56 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 89 nm

Spectrum MIR spectra of water ice (thickness = 89 nm) collected before irradiation with $Mg^5+$ (E = 56 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 89 nm) collected after irradiation with $Mg^5+$ (E = 56 keV) at T = 110 K

Sub-Experiment $Mg^3+$ E=36 keV

Sub-Experiment irradiation at T = 20 K - thickness = 47 nm

Spectrum MIR spectra of water ice (thickness = 47 nm) collected before irradiation with $Mg^3+$ (E = 36 keV) at T = 20 K Spectrum MIR spectra of water ice (thickness = 47 nm) collected after irradiation with $Mg^3+$ (E = 36 keV) at T = 20 K

Sub-Experiment irradiation at T = 40 K - thickness = 55 nm

Spectrum MIR spectra of water ice (thickness = 55 nm) collected before irradiation with $Mg^3+$ (E = 36 keV) at T = 40 K Spectrum MIR spectra of water ice (thickness = 55 nm) collected after irradiation with $Mg^3+$ (E = 36 keV) at T = 40 K

Sub-Experiment irradiation at T = 90 K - thickness = 49 nm

Spectrum MIR spectra of water ice (thickness = 49 nm) collected before irradiation with $Mg^3+$ (E = 36 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 49 nm) collected after irradiation with $Mg^3+$ (E = 36 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 49 nm

Spectrum MIR spectra of water ice (thickness = 53 nm) collected before irradiation with $Mg^3+$ (E = 36 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 53 nm) collected after irradiation with $Mg^3+$ (E = 36 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 53 nm

Spectrum MIR spectra of water ice (thickness = 53 nm) collected before irradiation with $Mg^3+$ (E = 36 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 53 nm) collected after irradiation with $Mg^3+$ (E = 36 keV) at T = 110 K

Sub-Experiment $S^7+$ E=126 keV

Sub-Experiment irradiation at T = 40 K - thickness = 101 nm

Spectrum MIR spectra of water ice (thickness = 101 nm) collected before irradiation with $S^7+$ (E = 126 keV) at T = 40 K Spectrum MIR spectra of water ice (thickness = 101 nm) collected after irradiation with $S^7+$ (E = 126 keV) at T = 40 K

Sub-Experiment irradiation at T = 90 K - thickness = 118 nm

Spectrum MIR spectra of water ice (thickness = 118 nm) collected before irradiation with $S^7+$ (E = 126 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 118 nm) collected after irradiation with $S^7+$ (E = 126 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 113 nm

Spectrum MIR spectra of water ice (thickness = 113 nm) collected before irradiation with $S^7+$ (E = 126 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 113 nm) collected after irradiation with $S^7+$ (E = 126 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 108 nm

Spectrum MIR spectra of water ice (thickness = 108 nm) collected before irradiation with $S^7+$ (E = 126 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 108 nm) collected after irradiation with $S^7+$ (E = 126 keV) at T = 110 K

Sub-Experiment irradiation at T = 110 K - thickness = 112 nm

Spectrum MIR spectra of water ice (thickness = 112 nm) collected before irradiation with $S^7+$ (E = 126 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 112 nm) collected after irradiation with $S^7+$ (E = 126 keV) at T = 110 K

Sub-Experiment irradiation at T = 120 K - thickness = 115 nm

Spectrum MIR spectra of water ice (thickness = 115 nm) collected before irradiation with $S^7+$ (E = 126 keV) at T = 120 K Spectrum MIR spectra of water ice (thickness = 115 nm) collected after irradiation with $S^7+$ (E = 126 keV) at T = 120 K

Sub-Experiment irradiation at T = 120 K - thickness = 111 nm

Spectrum MIR spectra of water ice (thickness = 111 nm) collected before irradiation with $S^7+$ (E = 126 keV) at T = 120 K Spectrum MIR spectra of water ice (thickness = 111 nm) collected after irradiation with $S^7+$ (E = 126 keV) at T = 120 K

Sub-Experiment $S^7+$ E=87 keV

Sub-Experiment irradiation at T = 90 K - thickness = 73 nm

Spectrum MIR spectra of water ice (thickness = 73 nm) collected before irradiation with $S^7+$ (E = 87 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 73 nm) collected after irradiation with $S^7+$ (E = 87 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 56 nm

Spectrum MIR spectra of water ice (thickness = 56 nm) collected before irradiation with $S^7+$ (E = 87 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 56 nm) collected after irradiation with $S^7+$ (E = 87 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 64 nm

Spectrum MIR spectra of water ice (thickness = 64 nm) collected before irradiation with $S^7+$ (E = 87 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 64 nm) collected after irradiation with $S^7+$ (E = 87 keV) at T = 110 K

Sub-Experiment irradiation at T = 120 K - thickness = 58 nm

Spectrum MIR spectra of water ice (thickness = 58 nm) collected before irradiation with $S^7+$ (E = 87 keV) at T = 120 K Spectrum MIR spectra of water ice (thickness = 58 nm) collected after irradiation with $S^7+$ (E = 87 keV) at T = 120 K

Sub-Experiment $S^7+$ E=49 keV

Sub-Experiment irradiation at T = 90 K - thickness = 54 nm

Spectrum MIR spectra of water ice (thickness = 54 nm) collected before irradiation with $S^7+$ (E = 49 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 54 nm) collected after irradiation with $S^7+$ (E = 49 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 44 nm

Spectrum MIR spectra of water ice (thickness = 44 nm) collected before irradiation with $S^7+$ (E = 49 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 44 nm) collected after irradiation with $S^7+$ (E = 49 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 45 nm

Spectrum MIR spectra of water ice (thickness = 45 nm) collected before irradiation with $S^7+$ (E = 49 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 45 nm) collected after irradiation with $S^7+$ (E = 49 keV) at T = 110 K

Sub-Experiment $O^6+$ E=108 keV

Sub-Experiment irradiation at T = 90 K - thickness = 177 nm

Spectrum MIR spectra of water ice (thickness = 177 nm) collected before irradiation with $O^6+$ (E = 108 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 177 nm) collected after irradiation with $O^6+$ (E = 108 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 214 nm

Spectrum MIR spectra of water ice (thickness = 214 nm) collected before irradiation with $O^6+$ (E = 108 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 214 nm) collected after irradiation with $O^6+$ (E = 108 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 173 nm

Spectrum MIR spectra of water ice (thickness = 173 nm) collected before irradiation with $O^6+$ (E = 108 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 173 nm) collected after irradiation with $O^6+$ (E = 108 keV) at T = 110 K

Sub-Experiment irradiation at T = 120 K - thickness = 184 nm

Spectrum MIR spectra of water ice (thickness = 184 nm) collected before irradiation with $O^6+$ (E = 108 keV) at T = 120 K Spectrum MIR spectra of water ice (thickness = 184 nm) collected after irradiation with $O^6+$ (E = 108 keV) at T = 120 K

Sub-Experiment $O^6+$ E=80 keV

Sub-Experiment irradiation at T = 90 K - thickness = 146 nm

Spectrum MIR spectra of water ice (thickness = 146 nm) collected before irradiation with $O^6+$ (E = 80 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 146 nm) collected after irradiation with $O^6+$ (E = 80 keV) at T = 90 K

Sub-Experiment irradiation at T = 90 K - thickness = 144 nm

Spectrum MIR spectra of water ice (thickness = 144 nm) collected before irradiation with $O^6+$ (E = 80 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 144 nm) collected after irradiation with $O^6+$ (E = 80 keV) at T = 90 K

Sub-Experiment irradiation at T = 90 K - thickness = 115 nm

Spectrum MIR spectra of water ice (thickness = 115 nm) collected before irradiation with $O^6+$ (E = 80 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 115 nm) collected after irradiation with $O^6+$ (E = 80 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 146 nm

Spectrum MIR spectra of water ice (thickness = 146 nm) collected before irradiation with $O^6+$ (E = 80 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 146 nm) collected after irradiation with $O^6+$ (E = 80 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 137 nm

Spectrum MIR spectra of water ice (thickness = 137 nm) collected before irradiation with $O^6+$ (E = 80 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 147 nm) collected after irradiation with $O^6+$ (E = 80 keV) at T = 120 K

Sub-Experiment irradiation at T = 120 K - thickness = 147 nm

Spectrum MIR spectra of water ice (thickness = 184 nm) collected before irradiation with $O^6+$ (E = 108 keV) at T = 120 K Spectrum MIR spectra of water ice (thickness = 184 nm) collected after irradiation with $O^6+$ (E = 108 keV) at T = 120 K

Sub-Experiment $O^6+$ E=50 keV

Sub-Experiment irradiation at T = 40 K - thickness = 84 nm

Spectrum MIR spectra of water ice (thickness = 84 nm) collected before irradiation with $O^6+$ (E = 50 keV) at T = 40 K Spectrum MIR spectra of water ice (thickness = 84 nm) collected after irradiation with $O^6+$ (E = 50 keV) at T = 40 K

Sub-Experiment irradiation at T = 40 K - thickness = 79 nm

Spectrum MIR spectra of water ice (thickness = 79 nm) collected before irradiation with $O^6+$ (E = 50 keV) at T = 40 K Spectrum MIR spectra of water ice (thickness = 79 nm) collected after irradiation with $O^6+$ (E = 50 keV) at T = 40 K

Sub-Experiment irradiation at T = 40 K - thickness = 96 nm

Spectrum MIR spectra of water ice (thickness = 96 nm) collected before irradiation with $O^6+$ (E = 50 keV) at T = 40 K Spectrum MIR spectra of water ice (thickness = 96 nm) collected after irradiation with $O^6+$ (E = 50 keV) at T = 40 K

Sub-Experiment irradiation at T = 90 K - thickness = 68 nm

Spectrum MIR spectra of water ice (thickness = 68 nm) collected before irradiation with $O^6+$ (E = 50 keV) at T = 90 K Spectrum MIR spectra of water ice (thickness = 68 nm) collected after irradiation with $O^6+$ (E = 50 keV) at T = 90 K

Sub-Experiment irradiation at T = 100 K - thickness = 99 nm

Spectrum MIR spectra of water ice (thickness = 99 nm) collected before irradiation with $O^6+$ (E = 50 keV) at T = 100 K Spectrum MIR spectra of water ice (thickness = 99 nm) collected after irradiation with $O^6+$ (E = 50 keV) at T = 100 K

Sub-Experiment irradiation at T = 110 K - thickness = 90 nm

Spectrum MIR spectra of water ice (thickness = 90 nm) collected before irradiation with $O^6+$ (E = 50 keV) at T = 110 K Spectrum MIR spectra of water ice (thickness = 90 nm) collected after irradiation with $O^6+$ (E = 50 keV) at T = 110 K

Spectrum preview

Title

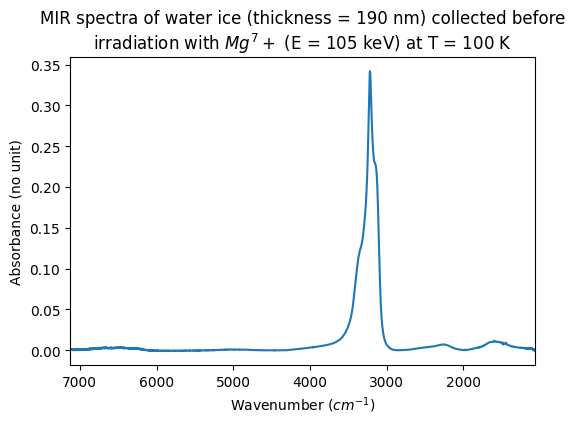

MIR spectra of water ice (thickness = 190 nm) collected before irradiation with Mg⁷+ (E = 105 keV) at T = 100 K

Database

Experiment type

laboratory measurement

Spectrum type

absorbance

Version

#1 (2025-07-04 05:58:22+0000 UTC)

Instrument parameters

Instrument: Bruker 70V - transmisson Mid-IR
Spectral observation mode: spectrum
Valid spectral range(s): 1064.0 - 7128.0 $cm^{-1}$
Observation geometry: direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: thin film H2O crystalline ice (Ic and/or Ih)
Origin: laboratory
Texture: compact fine grained
Thickness: 190.0 $\pm$ 0.3 $nm$
Temperature: 100.0 $\pm$ 1.0 $K$

References

Data reference: Moingeon, Audrey; Quirico, Eric; Poch, Olivier; Faure, Mathilde; Boduch, Philippe; Domaracka, Alicja; Rothard, Hermann (2024): MIR spectra collected before and after irradiation experiments (with different ions at varying energy) of crystalline water ice at temperature from 20 K to 120 K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20250630_001
