Spectrum preview
Title

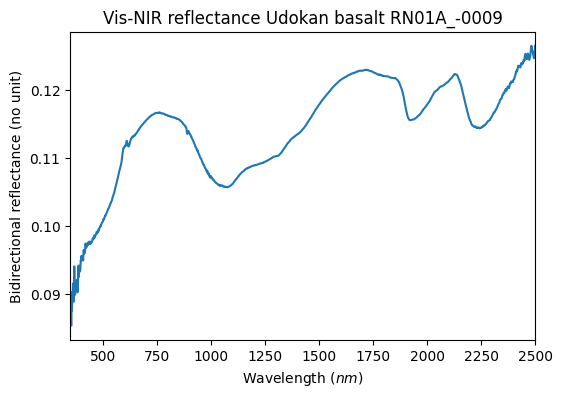

Vis-NIR reflectance Udokan basalt RN01A_-0009
Database
Experiment type
laboratory measurement
Spectrum type
bidirectional reflectance
Version
#1 (2017-08-12 13:07:27 UTC+0000)
Instrument parameters
Instrument
ASD reflection VIS-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
350.0 - 750.0 $nm$ ; 750.0 - 2500.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=0.0° ; az=0.0° ; ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Udokan basalt RN01A_
Origin
natural terrestrial
Thickness
10.0 $\pm$ 1.0 $mm$
Temperature
291.0 $\pm$ 2.0 $K$
References
Data reference
Gurgurewicz, Joanna (2009): Vis-NIR reflectance spectra of Udokan (Siberia, Russia) basalt. SSHADE/SOSYPOL (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_JG_20090125_001
