Spectrum preview
Title

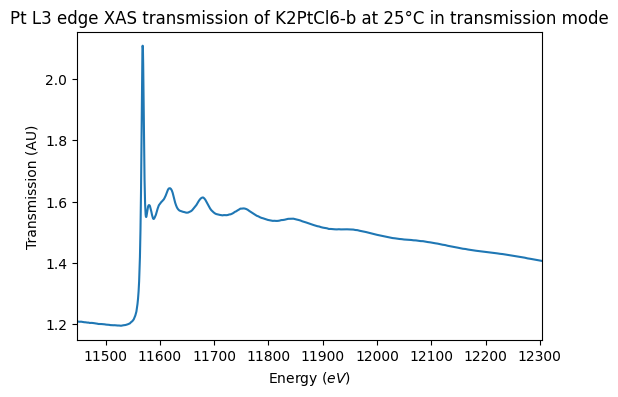

Pt L3 edge XAS transmission of K2PtCl6-b at 25°C in transmission mode
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2022-11-02 15:25:33 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode
spectrum
Valid spectral range(s)
11446.9 - 12303.8 $eV$
Observation geometry
direct :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of K2PtCl6 mixed with BN
Origin
commercial
Texture
compact poor grained
Thickness
2.0 $\pm$ 0.5 $mm$
Temperature
25.0 $\pm$ 5.0 $^{\circ}C$
Pressure
1.0 $bar$
References
Data reference
Pokrovski, Gleb; Hazemann, Jean-Louis (2018): Pt L3 edge XAS fluorescence and XAS transmission of Aqueous platinum chloride soutions at 600-700 nars and 30°C. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GP_20180208_001
