- Instrument

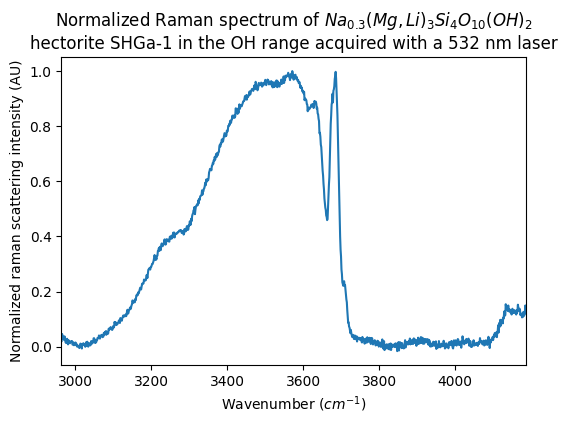

- Micro-Raman LabRam HR800 - 532 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 2964.0 - 4187.0 $cm^{-1}$
- Observation geometry
- directional-conical :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Hectorite
- Origin
- natural terrestrial
- Texture
- compact crystal
- Temperature
- 22.0 $\pm$ 1.0 $^{\circ}C$
References
- Data reference
- Montagnac, Gilles (2000): Raman spectra of some phyllosilicates. SSHADE/REAP (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GM_20190903_001
- Publications
