Spectrum preview
Title

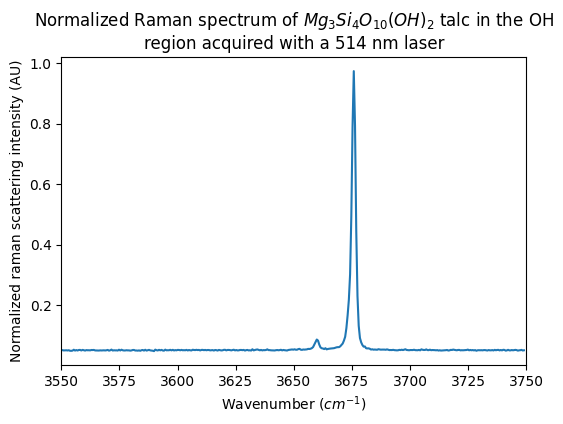

Normalized Raman spectrum of $Mg_3Si_4O_{10}(OH)_2$ talc in the OH region acquired with a 514 nm laser
Database
Experiment type
laboratory measurement
Spectrum type
normalized Raman scattering intensity
Version
#1 (2019-09-03 13:49:33 UTC+0000)
Instrument parameters
Instrument
DILOR XY micro-Raman - 514 nm
Spectral observation mode
spectrum
Valid spectral range(s)
3550.0 - 3750.0 $cm^{-1}$
Observation geometry
directional-conical :
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Talc
Origin
natural terrestrial
Texture
compact crystal
Temperature
22.0 $\pm$ 1.0 $^{\circ}C$
References
Data reference
Montagnac, Gilles (2000): Raman spectra of some phyllosilicates. SSHADE/REAP (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GM_20190903_001
Publications
