Spectrum preview
Title

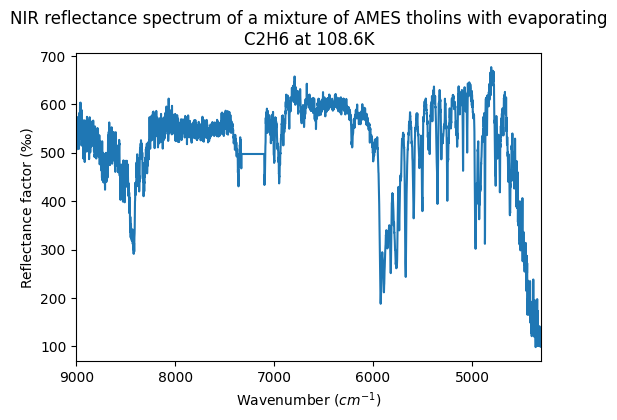

NIR reflectance spectrum of a mixture of AMES tholins with evaporating C2H6 at 108.6K
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2017-08-12 13:46:24 UTC+0000)
Instrument parameters
Instrument
FTIR_NIR_reflectance
Spectral observation mode
spectrum
Valid spectral range(s)
7330.0 - 9000.0 $cm^{-1}$ ; 4300.0 - 7100.0 $cm^{-1}$
Observation geometry
bidirectional : i=0.0° ; e=5.0° ; az=0.0° ; ph=5.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Mixture of Tholins_AMES_90N2_10CH4 with liquid C2H6
Origin
commercial
Texture
muddy
Temperature
108.6 $\pm$ 20.5 $K$
Fluid
References
Data reference
Mege, Daniel; Nna-Mvondo, Delphine; Singh, Sandeep; Chevrier, Vincent (2013): NIR reflectance spectra of mixtures of AMES tholins with liquid and solid CH4, C2H6 and CH3CN at several temperatures. SSHADE/SOSYPOL (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DM_20131017_001
