- Title

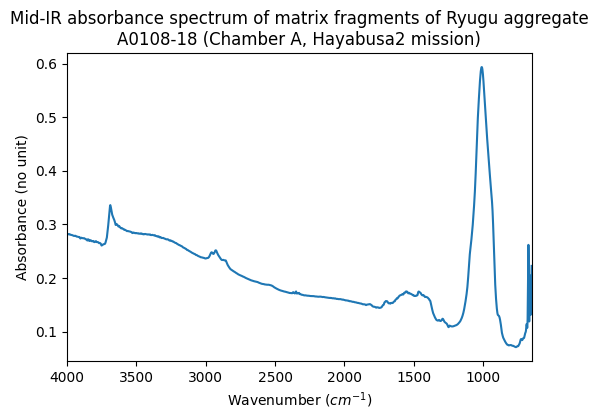

- Mid-IR absorbance spectrum of matrix fragments of Ryugu aggregate A0108-18 (Chamber A, Hayabusa2 mission)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorbance
- Version
- #1 (2023-08-16 09:01:50 UTC+0000)
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 650.0 - 4000.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- A0108_18
- Texture
- individual grains
- Thickness
- 10.0 $\pm$ 10.0 ${\mu}m$
- Temperature
- 22.0 $\pm$ 2.0 $^{\circ}C$
- Fluid
References
- Data reference
- Quirico, Eric; Bonal, Lydie; Amano, Kana; Phan Thai, Hai Van (2022): Normalized Mid-IR absorbance spectra of IOM extracted from fragments of individual particles and aggregates of Ryugu samples (chambers A and C, Hayabusa2 mission). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20230508_001
