- Title
- Normalized Mid-IR absorbance spectra of IOM extracted from fragments of individual particles and aggregates of Ryugu samples (chambers A and C, Hayabusa2 mission)
- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20230508_001
- Data reference
- Quirico, Eric; Bonal, Lydie; Amano, Kana; Phan Thai, Hai Van (2022): Normalized Mid-IR absorbance spectra of IOM extracted from fragments of individual particles and aggregates of Ryugu samples (chambers A and C, Hayabusa2 mission). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20230508_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

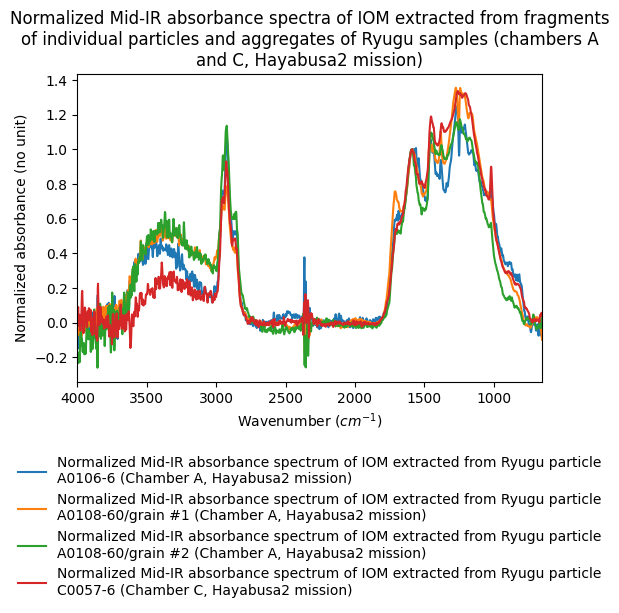

- Mid-IR absorbance spectra obtained from micro-transmission measurements of grains of IOM extracted from several fragments of Ryugu A and C Chambers (Hayabusa2 mission): samples A0106-4, A0106-6, A0106-23,24,25, A0108-60, A0108-61, C0109-9, and C0057-6, plus two raw grains spectra: A0108-10 and A0108-18
- Number of spectra
- 10
- Variable type(s)
-
- sample composition
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Sample holder
- environmental cell maintained under secondary vacuum
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 650.0 - 4000.0 1.93 4.0 0.5
- Observation mode
- single spot
- Objective type
- x15
- Pixels number
- 1 x 1
- Image size
- 50.0 x 50.0 ${\mu}m$
- Comments
- the typical size of the spot onto the sample was between 50 x 50 and 100 x 100 $µm^2$.
- Date begin - end
- 2022-01-01 - 2022-06-30
Versions
- Release date
- 2024-08-19 07:51:42 UTC+0000
- Version (Date)
- #1 (2024-08-19 07:51:42 UTC+0000, Updated: 2024-08-19 07:51:42 UTC+0000)
- Sponsors
-
- None (CNES Programme "Système Solaire")
- H2020 European Research Council (H2020 ERC) (SOLARYS ERC-CoG2017_771691)
