- Title

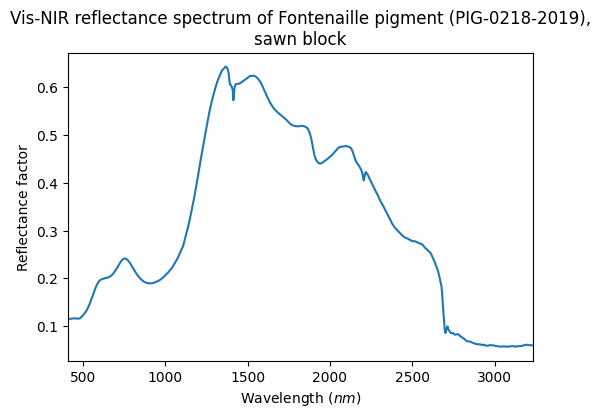

- Vis-NIR reflectance spectrum of Fontenaille pigment (PIG-0218-2019), sawn block
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2020-06-25 11:20:31 UTC+0000)
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 410.0 - 678.0 $nm$ ; 682.0 - 802.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 806.0 - 1426.0 $nm$ ; 1430.0 - 3198.0 $nm$ ; 3202.0 - 3234.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pigment Fontenaille (PIG-0218-2019), ferruginous sandstone, sawn raw piece
- Texture
- compact fine grained
- Thickness
- 5.0 $\pm$ 0.5 $mm$
- Temperature
- 298.0 $\pm$ 1.0 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie (2019): Vis-NIR reflectance spectra of Fontenaille pigments (PIG-0175-2016 + PIG-0218-2019): raw block, powders with different grain sizes and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20191012_100
