- Title

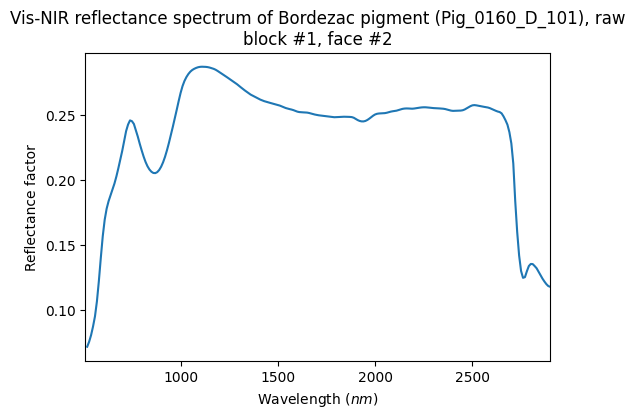

- Vis-NIR reflectance spectrum of Bordezac pigment (Pig_0160_D_101), raw block #1, face #2
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2020-05-30 20:03:34 UTC+0000)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 510.0 - 590.0 $nm$ ; 600.0 - 1420.0 $nm$ ; 1430.0 - 2900.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pigment Bordezac facies D (Pig_0160_D_101), raw block #1
- Texture
- compact fine grained
- Thickness
- 10.0 $\pm$ 3.0 $mm$
- Temperature
- 297.5 $\pm$ 0.5 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Bordezac pigments (Pig_0160_D): blocks, powders, plots and painted matters. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200422_100
