- Title

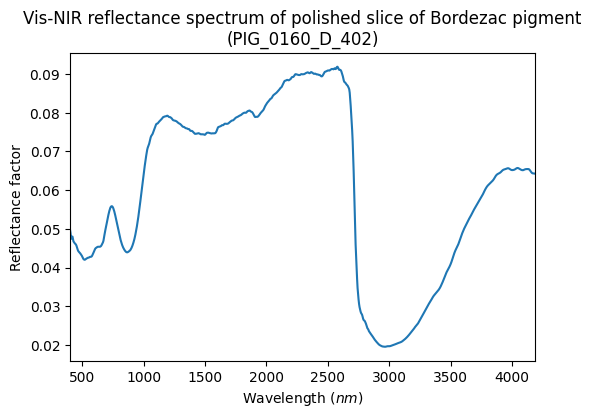

- Vis-NIR reflectance spectrum of polished slice of Bordezac pigment (PIG_0160_D_402)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2021-03-30 21:05:58 UTC+0000)
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 402.0 - 458.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 462.0 - 678.0 $nm$ ; 682.0 - 1598.0 $nm$ ; 1602.0 - 2834.0 $nm$ ; 2842.0 - 4186.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pigment Bordezac Facies D (PIG_0160_D_402) - polished slice #2
- Texture
- compact fine grained
- Thickness
- 7.0 $\pm$ 0.5 $mm$
- Temperature
- 293.0 $\pm$ 5.0 $K$
References
- Data reference
- Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Bordezac pigments (Pig_0160_D): blocks, powders, plots and painted matters. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200422_100
- Publications
