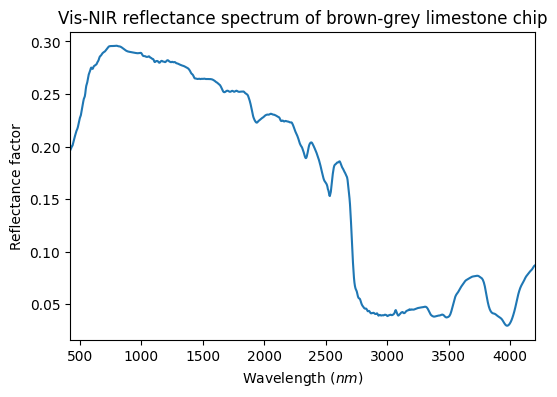

Spectrum preview
Title
Vis-NIR reflectance spectrum of brown-grey limestone chip
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2021-03-30 11:44:29 UTC+0000)
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
422.0 - 598.0 $nm$ ; 602.0 - 1426.0 $nm$ ; 1430.0 - 3198.0 $nm$ ; 3202.0 - 4202.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Beauregard (PIG_0174_A_902) painted on brown limestone chip
Texture
cemented granular, compact fine grained
Thickness
5.05 $\pm$ 0.55 $mm$
Temperature
293.0 $\pm$ 5.0 $K$
References
Data reference
Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Beauregard pigments (PIG_0174_A): raw blocks, powders, polished plot and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200812_100
