Sample

Name: Beauregard (PIG_0174_A_902) painted on brown limestone chip

Owner of sample

Database

PIG

Experimentalists

Emilie Chalmin-Aljanabi

Origin of sample

Date: 2019-12-10
Provider: Pigmenthothèque - EDYTEM

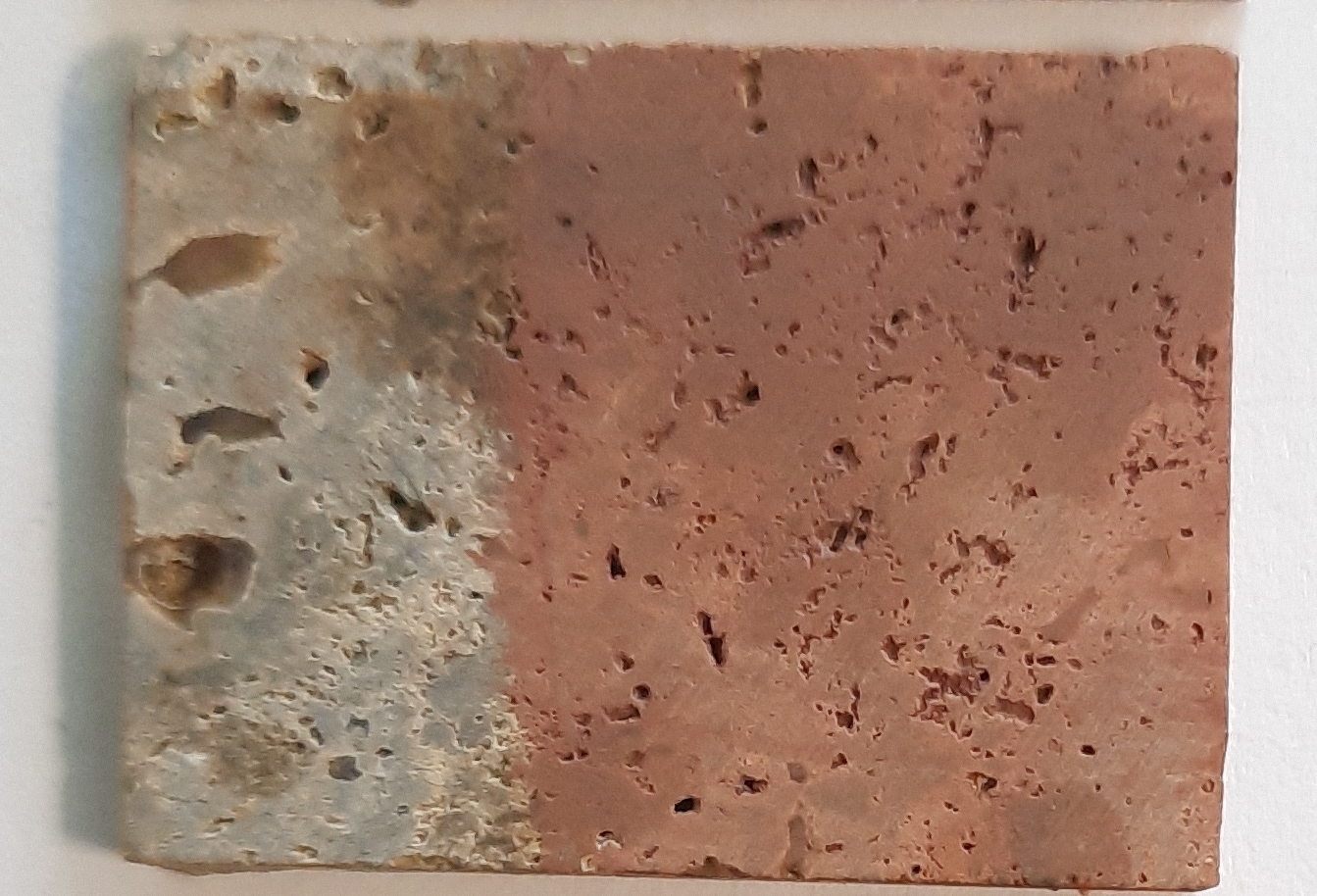

Pigment Beauregard (PIG_0174_A_902) painted on a brown limestone chip

Physical characteristics

Thickness: 5.05 $\pm$ 0.55 $mm$
Surface roughness: smooth, polished chip
Comments: limestone chip ~32x24mm, painted area ~20x24mm

Sample environment: Temperature

Temperature: 293.0 $\pm$ 5.0 $K$

Sample environment: Fluid

Type: ambient air
Fluid temperature: 293.0 $K$
Fluid pressure: 1.0 $bar$
Comments: room conditions

Layers in sample

Number

2

Arrangement

the layer of paint is deposited with a brush on the limestone substrate

Layers

Painted pigment Beauregard (grains inf. 160µm) , 0.05 $mm$
Limestone chip , 5.0 $mm$
