- Title

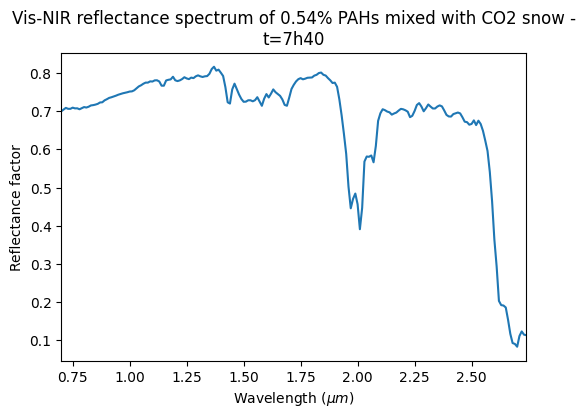

- Vis-NIR reflectance spectrum of 0.54% PAHs mixed with CO2 snow - t=7h40
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2019-11-11 11:10:50 UTC+0000)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.7 - 1.59 ${\mu}m$ ; 1.6 - 2.74 ${\mu}m$
- Observation geometry
- bidirectional : i=0.0° ; e=20.0° ; az=0.0° ; ph=20.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- CO2 snow with 0.54% of a PAH mix
- Texture
- sintered granular
- Temperature
- 173.0 $\pm$ 2.0 $K$
- Fluid
-
- $CO_2$ , 100.0%
References
- Data reference
- Campbell, Jacqueline; Schmitt, Bernard; Beck, Pierre; Brissaud, Olivier (2017): Vis-NIR reflectance spectra of a mix of three PAHs, PAHs mixed with CO2 snow and PAHs mixed with JSC Mars-1 simulant. SSHADE/CSS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20181101_001
