- Title

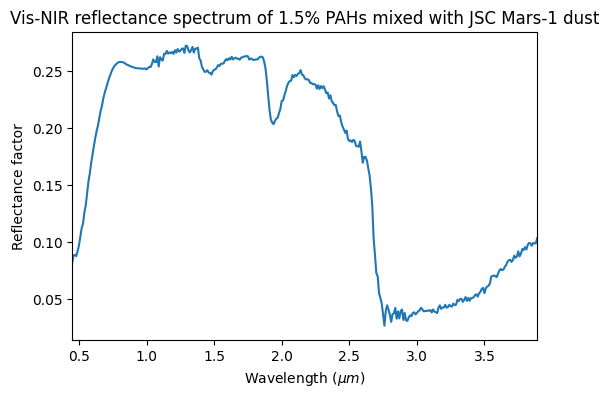

- Vis-NIR reflectance spectrum of 1.5% PAHs mixed with JSC Mars-1 dust
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2018-11-13 17:56:51+0000 UTC)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.45 - 0.69 μm ; 0.7 - 1.59 μm ; 1.6 - 2.99 μm ; 3.0 - 3.89 μm
- Observation geometry
- bidirectional : i=0.0° ; e=20.0° ; az=0.0° ; ph=20.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- JSC Mars-1 dust with 1.5% of a PAH mix
- Texture
- loose granular
- Thickness
- 5.0 ± 0.5 mm
- Temperature
- 295.0 ± 2.0 K
References
- Data reference
- Campbell, Jacqueline; Schmitt, Bernard; Beck, Pierre; Brissaud, Olivier (2017): Vis-NIR reflectance spectra of a mix of three PAHs, PAHs mixed with CO2 snow and PAHs mixed with JSC Mars-1 simulant. SSHADE/CSS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20181101_001
