Spectrum preview
Title

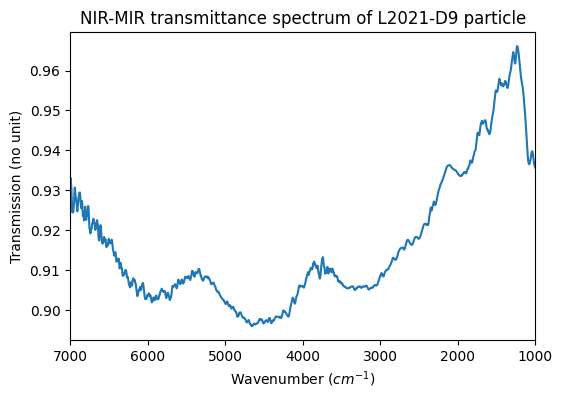

NIR-MIR transmittance spectrum of L2021-D9 particle
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2018-06-07 11:52:41 UTC+0000)
Instrument parameters
Instrument
MicroIR_Transmittance_0-10micron
Spectral observation mode
spectrum
Valid spectral range(s)
1000.0 - 7000.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
IDP L2021D9, chondrite Ol+Pyx class, very porous
Texture
single grain
Thickness
11.5 ${\mu}m$
Temperature
20.0 $\pm$ 10.0 $^{\circ}C$
'
References
Data reference
Rotundi, Alessandra (2005): IR measurements on stratospheric porous IDPs. SSHADE/COMEDA (OSUG Data Center). Dataset/Spectral Data.
