Experiment
Title
IR measurements on stratospheric porous IDPs
Data reference
Rotundi, Alessandra (2005): IR measurements on stratospheric porous IDPs. SSHADE/COMEDA (OSUG Data Center). Dataset/Spectral Data.
Publications
Database(s)
Experimentalists
Type(s)
laboratory measurement
Description

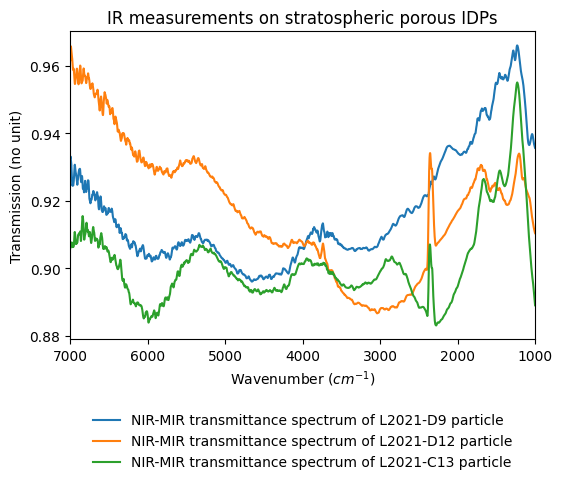

IR spectra of three porous IDPs from the collector L2021
Number of spectra
3
Variable type(s)
  • sample composition
Instrument
MicroIR_Transmittance_0-10micron
Sample holder
Sample holder specifically designed, with probe clip placed on Cu grid, to prevent contamination
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
NIR, MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 1000.0 - 7000.0 2.0 4.0
Observation mode
single spot
Spatial resolution
2.0 ${\mu}m$
Date begin - end
2005-09-21 - 2005-09-21

Versions

Release date
2019-02-20 12:42:18 UTC+0000
Version (Date)
#1 (2018-06-07 11:52:41 UTC+0000, Updated: 2019-05-20 13:14:58 UTC+0000)
