- DOI
- 10.26302/SSHADE/EXPERIMENT_SB_20210219_001
- Data reference

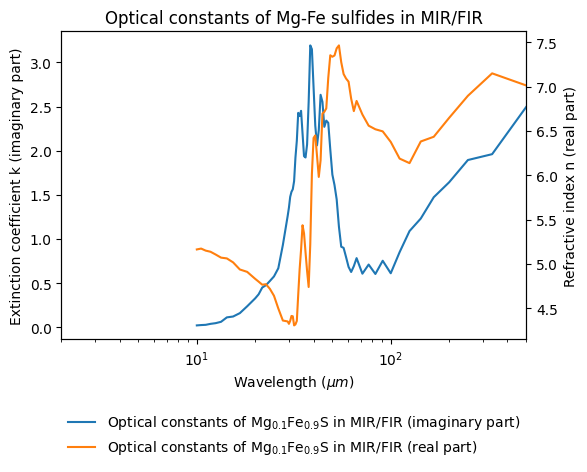

- Begemann, Birgit; Dorschner, Johann; Henning, Thomas; Mutschke, Harald (1994): Optical constants of Mg-Fe sulfides in MIR/FIR. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20210219_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 5
- Variable type(s)
-
- sample composition
- Instrument
- BRUKER 113v – reflection Mid-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 2.0 - 25.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 12.0°
- Emergence angle
- 12.0°
- Resolution illumination
- 6.0°
- Resolution observation
- 6.0°
- Observation mode
- single spot
- Spatial resolution
- 2.5 $mm$
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- FIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 15.0 - 500.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 12.0°
- Emergence angle
- 12.0°
- Resolution illumination
- 6.0°
- Resolution observation
- 6.0°
- Observation mode
- single spot
- Spatial resolution
- 2.5 $mm$
- Date begin
- 1994-01-01
Versions
- Release date
- 2021-03-24 13:39:31 UTC+0000
- Version (Date)
- #1 (2021-03-24 13:39:31 UTC+0000, Updated: 2021-03-24 13:39:31 UTC+0000)
