- Title

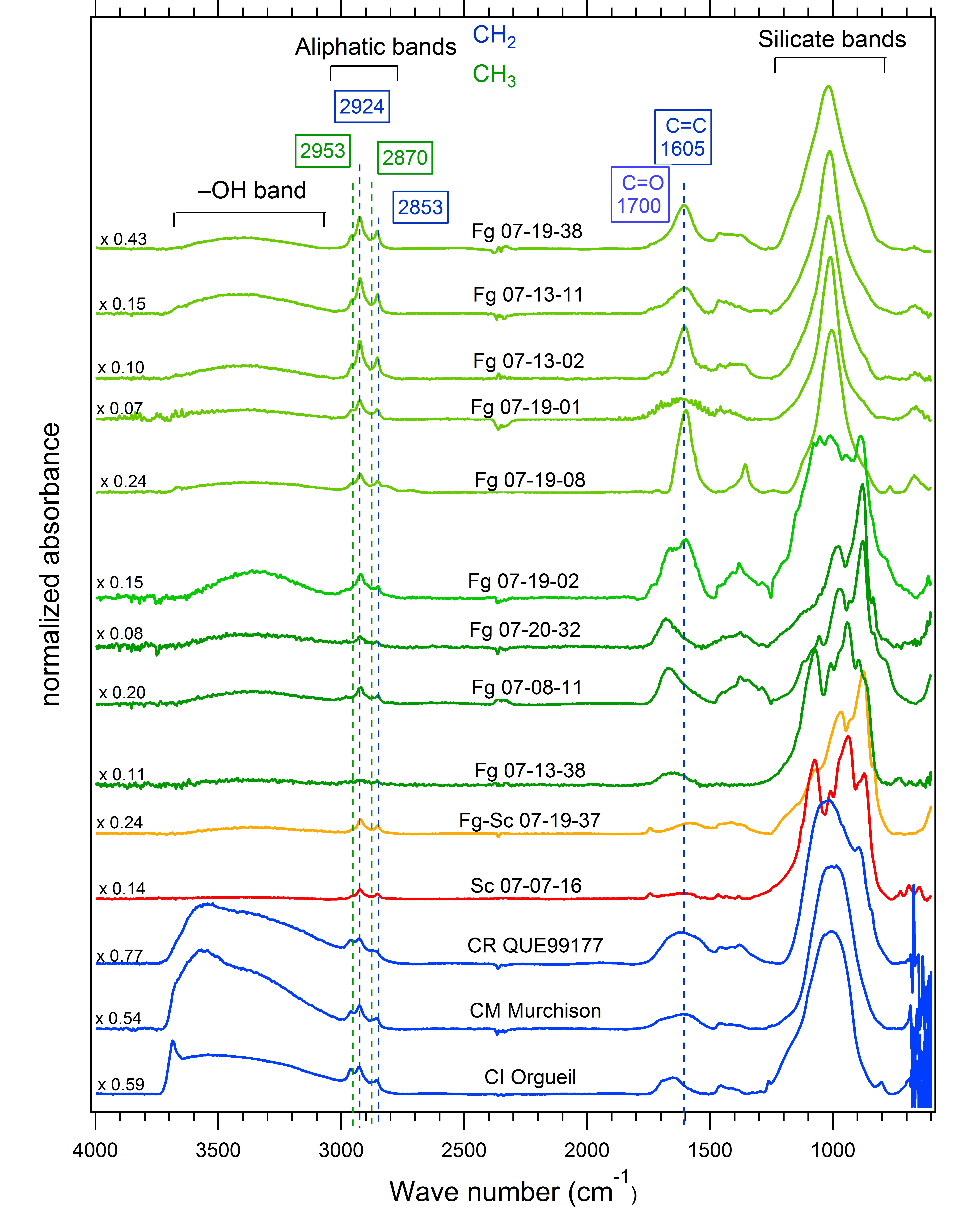

- Baseline-corrected and normalized Mid-IR absorbance spectra of fragments of AMMs pressed on diamond or germanium window under vacuum and at 80°C
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20171025_001
- Data reference
- Battandier, Manon; Bonal, Lydie (2016): Baseline-corrected and normalized Mid-IR absorbance spectra of fragments of AMMs pressed on diamond or germanium window under vacuum and at 80°C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20171025_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- MIR spectra of several fragments of Fg-AMMs DC06-09 (vacuum, 80°C) pressed on diamond or germanium substrate
- Number of spectra
- 11
- Variable type(s)
-
- chemical variability
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Sample holder
- the samples were loaded in a cell, enabling temperature up to 300°C under vacuum (from $10^{-4}$ mbar down to $10^{-7}$ mbar). Optical access is permitted from both sides of the cell through KBr windows, thus enabling measurements in transmission.
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 600.0 - 4000.0 1.9287 4.0 0.05
- Observation mode
- single spot
- Spots number
- 1
- Objective type
- 15
- Pixels number
- 1 x 1
- Image size
- 50.0 x 50.0 ${\mu}m$
- Spatial resolution
- 3.0 ${\pm}$ 1.0 ${\mu}m$
- Comments
- the typical size of the spot on the sample was 50 x 50 µm²
- Date begin - end
- 2016-01-01 - 2016-07-01
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2021-12-07 09:03:17 UTC+0000)
