- DOI
- 10.26302/SSHADE/EXPERIMENT_JG_20091028_001
- Data reference
- Gurgurewicz, Joanna (2009): Vis-NIR reflectance spectra of Udokan (Siberia, Russia) basalt powder. SSHADE/SOSYPOL (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_JG_20091028_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

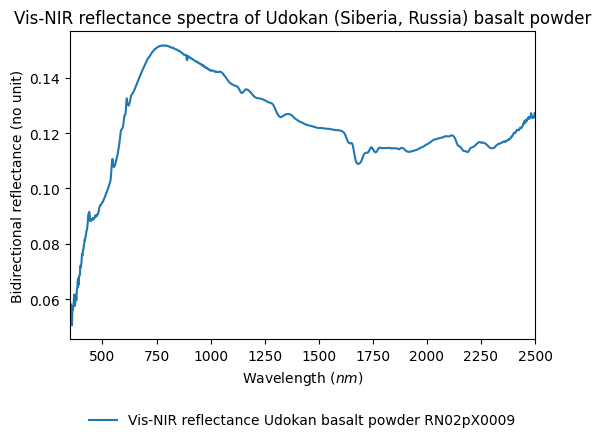

- Vis-NIR reflectance spectra of the Udokan basalts altered in cold and arid environment (Siberia). The samples were collected along lava flow. The experiment contains spectra of the whole-rock powders.
- Number of spectra
- 3
- Variable type(s)
-
- sample composition
- Instrument
- ASD reflection VIS-NIR
- Sample holder
- PVC sample holder 5 cm diameter and 2 cm depth
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 350.0 - 750.0 3.0 #2 750.0 - 2500.0 10.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 0.0°
- Azimuth angle
- 0.0°
- Phase angle
- 0.0°
- Observation mode
- single spot
- Date begin - end
- 2009-10-28 - 2009-10-28
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2019-12-06 14:00:17 UTC+0000)
