Ge K edge XAS transmission of Ge compounds at 25°C | FAME

Experiment

Title: Ge K edge XAS transmission of Ge compounds at 25°C

DOI

10.26302/SSHADE/EXPERIMENT_JB_20131001_001

Data reference

Cauzid, Jean; Bonnet, Julien; Proux, Olivier (2013): Ge K edge XAS transmission of Ge compounds at 25°C. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_JB_20131001_001

Publications

Bonnet et al., 2017, Minerals, 7, 79

Owner

Database(s)

FAME

Experimentalists

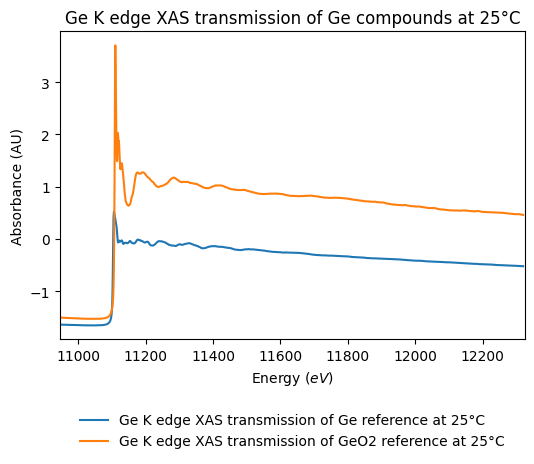

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 2
Comments: These data were acquired on the BM30 beamline in the frame of the ES-75 proposal.

Variable parameters

Variable type(s)

sample composition

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: X-ray Absorption Spectroscopy measured in transmission mode
Sample holder: simple holder

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ( $eV$ )	Sampling ( $eV$ )	Resolution ( $eV$ )	Position accuracy ( $eV$ )	Absorption edge
#1	10945.0 - 12325.0		0.569		$Ge$ (K: 11.1031 $keV$ )

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Ge(0) pellet (first maximum of the derivative set at 11103 eV).

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).

Observation geometry: direct
Observation mode: fixed angles

Spatial parameters

Observation mode: single spot

History

Date begin - end: 2013-10-01 - 2013-10-09

Versions

Release date: 2025-05-12 06:56:14+0000 UTC
Version (Date): #1 (2025-05-12 06:56:14+0000 UTC, Updated: 2025-05-12 06:56:14+0000 UTC)
