- Title

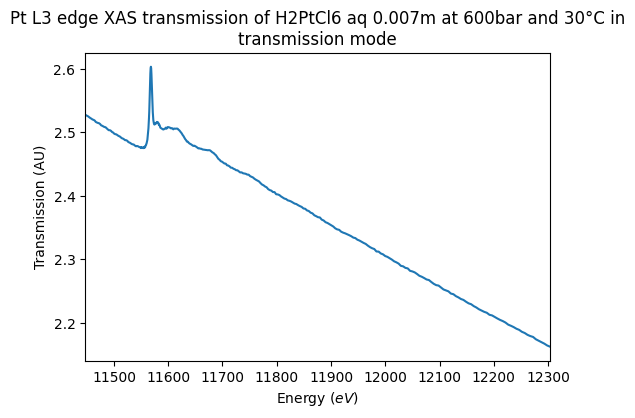

- Pt L3 edge XAS transmission of H2PtCl6 aq 0.007m at 600bar and 30°C in transmission mode
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2021-11-02 09:26:10 UTC+0000)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 11446.9 - 12303.8 $eV$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- H2PtCl6 aq solution 0.007m + 0.616m HCl + 0.004m KBr
- Origin
- laboratory
- Texture
- liquid
- Thickness
- 4.0 $\pm$ 0.1 $mm$
- Temperature
- 30.0 $\pm$ 5.0 $^{\circ}C$
- Pressure
- 600.0 $bar$
- Fluid
-
- $He$ , 100.0%
References
- Data reference
- Pokrovski, Gleb; Hazemann, Jean-Louis (2018): Pt L3 edge XAS fluorescence and XAS transmission of Aqueous platinum chloride soutions at 600-700 nars and 30°C. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GP_20180208_001
