Spectrum preview
Title

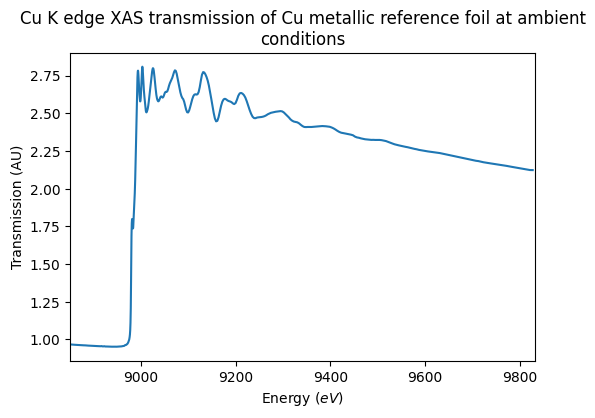

Cu K edge XAS transmission of Cu metallic reference foil at ambient conditions
Database
Spectrum type
transmission
Version
#1 (2018-01-17 14:53:11)
Instrument parameters
Instrument
BM30B transmission
Valid spectral range(s)
8850.0 - 9832.0 $eV$
Observation mode
single spot
Sample preview
Name
Cu metallic foil
Origin
commercial
Texture
compact
Thickness
0.005 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
Pressure
1.0 $bar$
