Cu K edge XAS transmission of Cu metallic foil reference at ambient conditions | FAME

Experiment

Title: Cu K edge XAS transmission of Cu metallic foil reference at ambient conditions

References

DOI: 10.26302/SSHADE/EXPERIMENT_DT_20180117_002
Data reference: Proux, Olivier (2008): Cu K edge XAS transmission of Cu metallic foil reference at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DT_20180117_002

Owner

Database(s)

FAME

Experimentalists

Olivier Proux

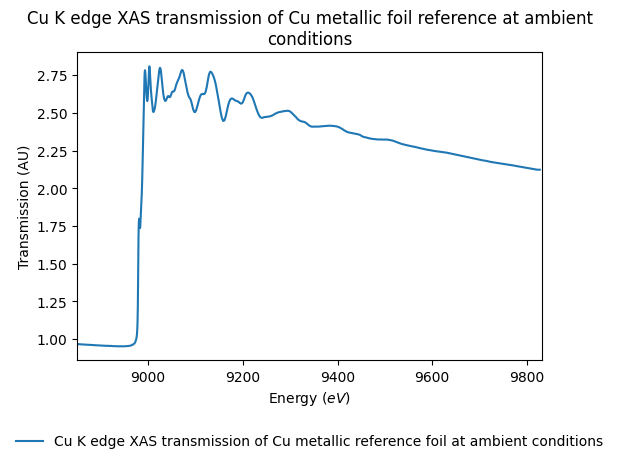

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1

Variable parameters

Variable type(s)

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: X-ray Absorption Spectroscopy measured in transmission mode

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ($eV$)	Sampling ($eV$)	Resolution ($eV$)	Position accuracy ($eV$)	Absorption edge
#1	8850.0 - 9832.0		0.46		$Cu$ (K: 8.9878 $keV$)

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated on the spectrum itself: by definition, th first maximum of the derivative was set at 8979 eV.

Spatial parameters

Observation mode: single spot

History

Date begin: 2008-06-10

Versions

Release date: 2018-01-31 23:51:01 UTC+0000
Version (Date): #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2018-11-20 14:23:23 UTC+0000)
