Spectrum preview
Title

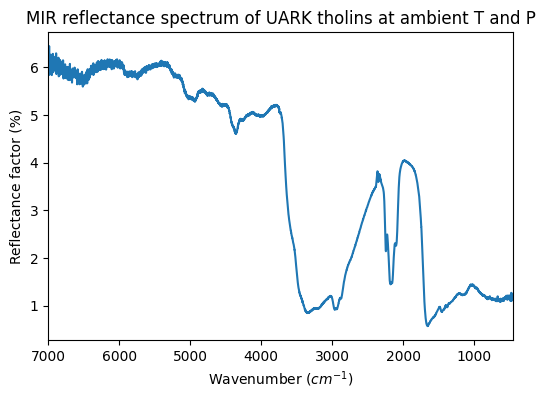

MIR reflectance spectrum of UARK tholins at ambient T and P
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2018-06-02 22:54:41 UTC+0000)
Instrument parameters
Instrument
FTIR_NIR_reflectance
Spectral observation mode
spectrum
Valid spectral range(s)
450.0 - 7000.0 $cm-1$
Observation geometry
bidirectional : i=0.0° ; e=5.0° ; az=0.0° ; ph=5.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Tholins UARK 90N2 10CH4
Texture
pulverulent
Thickness
0.5 $\pm$ 0.5 $mm$
Temperature
292.0 $\pm$ 5.0 $K$
References
Data reference
Mege, Daniel; Nna-Mvondo, Delphine; Singh, Sandeep; Chevrier, Vincent (2014): NIR and MIR reflectance spectra of mixtures of UARK tholins with liquid and solid CH4, C2H6 and CH3CN at several temperatures. SSHADE/SOSYPOL (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DM_20141115_002
