- Title

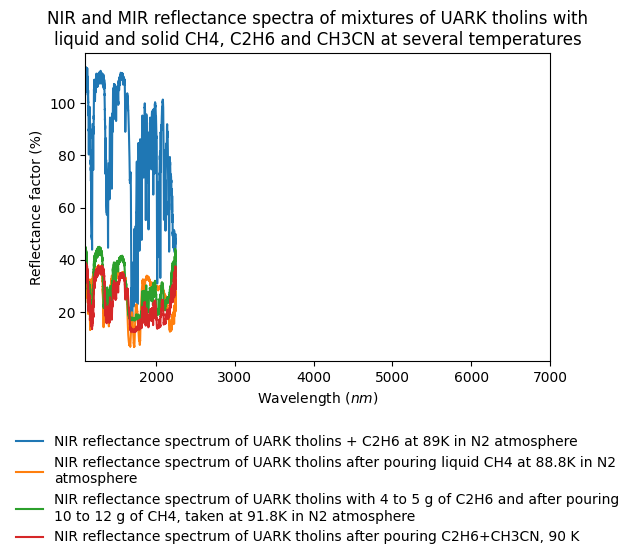

- NIR and MIR reflectance spectra of mixtures of UARK tholins with liquid and solid CH4, C2H6 and CH3CN at several temperatures
- DOI
- 10.26302/SSHADE/EXPERIMENT_DM_20141115_002
- Data reference
- Mege, Daniel; Nna-Mvondo, Delphine; Singh, Sandeep; Chevrier, Vincent (2014): NIR and MIR reflectance spectra of mixtures of UARK tholins with liquid and solid CH4, C2H6 and CH3CN at several temperatures. SSHADE/SOSYPOL (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DM_20141115_002
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- NIR and MIR reflectance spectra of synthesized UARK tholins (from 90% N2:10% CH4) pure and mixed with various liquids and solids (CH4, C2H6 and CH3CN) at varying temperature
- Number of spectra
- 29
- Variable type(s)
-
- sample abundance
- temperature
- sample composition
- Comments
- sample abundance is varying with temperature due to sublimation of liquid
- Instrument
- FTIR_NIR_reflectance
- Sample holder
- Andromeda simulation chamber with Titan Module
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR, MIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 1100.0 - 7000.0 4.0 2.0 - Comments
- NIR reflectance spectra measured in the range 1000-2500 nm and the MIR spectra in the range 1250-8000 nm.
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 5.0°
- Azimuth angle
- 0.0°
- Phase angle
- 5.0°
- Observation mode
- single spot
- Spatial resolution
- 15.0 ${\pm}$ 5.0 $mm$
- Date begin - end
- 2014-11-15 - 2014-11-15
Versions
- Release date
- 2020-02-13 12:08:55 UTC+0000
- Version (Date)
- #1 (2020-02-13 12:08:55 UTC+0000, Updated: 2020-02-13 12:08:55 UTC+0000)
