Experiment
Title
NIR and MIR reflectance spectra of AMES tholins (from 90% $N_2$:10% $CH_4$ gas)
DOI
10.26302/SSHADE/EXPERIMENT_DM_20121002_004
Data reference
Nna-Mvondo, Delphine (2012): NIR and MIR reflectance spectra of AMES tholins (from 90% $N_2$:10% $CH_4$ gas). SSHADE/SOSYPOL (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DM_20121002_004
Publications
Database(s)
Experimentalists
Type(s)
laboratory measurement
Description

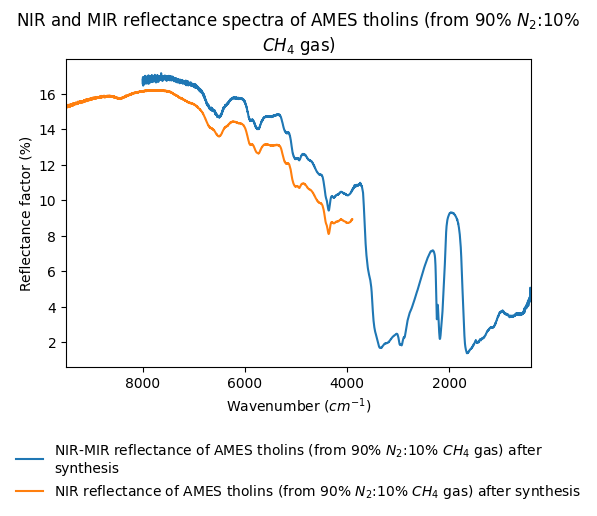

NIR and MIR reflectance spectra of AMES tholins (from 90% $N_2$:10% $CH_4$ gas) after synthesis, at ambient temperature
Number of spectra
2
Variable type(s)
  • sample composition
Instrument
FTIR_NIR_MIR_TIR_reflectance
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
NIR, MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 400.0 - 9500.0 2.0
Observation geometry
bidirectional
Observation mode
fixed angles
Incidence angle
0.0°
Emergence angle
0.0°
Azimuth angle
0.0°
Phase angle
0.0°
Observation mode
single spot
Date begin - end
2012-10-02 - 2012-10-02

Versions

Release date
2018-05-23 17:08:10 UTC+0000
Version (Date)
#1 (2018-05-23 16:37:17 UTC+0000, Updated: 2019-12-20 16:18:49 UTC+0000)
