Spectrum preview
Title

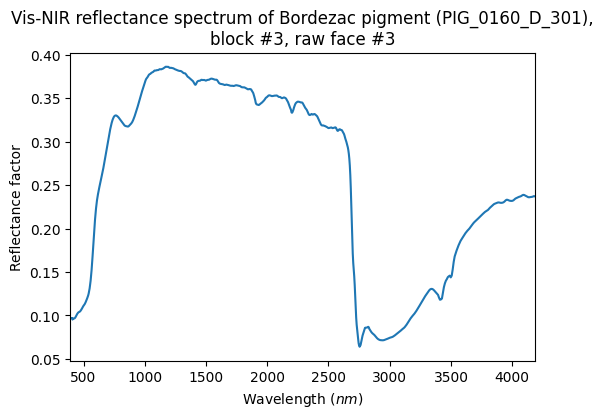

Vis-NIR reflectance spectrum of Bordezac pigment (PIG_0160_D_301), block #3, raw face #3
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2021-03-30 21:05:58 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
390.0 - 598.0 $nm$ ; 602.0 - 1598.0 $nm$ ; 1602.0 - 2834.0 $nm$ ; 2842.0 - 4186.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pigment Bordezac facies D (PIG_0160_D_301), block #3
Texture
compact fine grained
Thickness
15.0 $mm$
Temperature
293.0 $\pm$ 5.0 $K$
References
Data reference
Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Bordezac pigments (Pig_0160_D): blocks, powders, plots and painted matters. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200422_100
Publications
