Experiment
Title

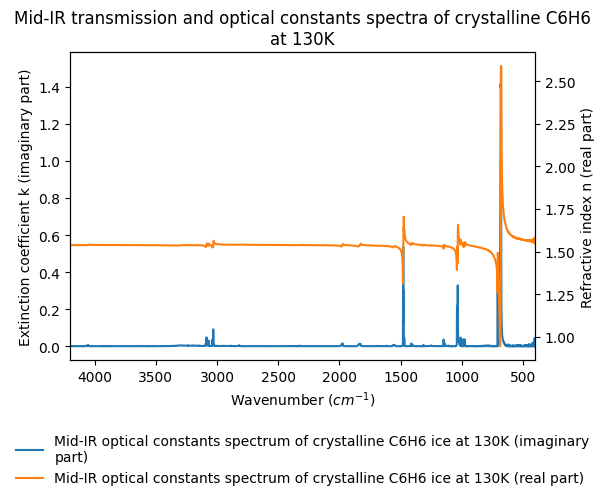

Mid-IR transmission and optical constants spectra of crystalline C6H6 at 130K
DOI
10.26302/SSHADE/EXPERIMENT_BS_20170830_001
Data reference
Schmitt, Bernard; Vinatier, Sandrine; Bernard, Jean-Michel (2015): Mid-IR transmission and optical constants spectra of crystalline C6H6 at 130K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20170830_001
Publications
Type(s)
laboratory measurement
Description
Mid-IR transmission (thin film 1.65µm thick) and optical constants spectra of crystalline C6H6 at 130K
Number of spectra
2
Variable type(s)
  • no
Instrument
Nicolet 800 – transmission Mid-IR
Sample holder
CsI window 2mm thick cooled by He cryostat in UHV chamber with 2 CsI windows 5mm thick
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 400.0 - 4200.0 0.482146 0.96 0.05
Observation geometry
direct
Observation mode
fixed angles
Incidence angle
0.0°
Emergence angle
180.0°
Azimuth angle
0.0°
Phase angle
180.0°
Resolution illumination
15.0°
Resolution observation
20.0°
Illumination
Observation
Comments
possibly partly polarized beam by beamsplitter
Observation mode
single spot
Image size
8.0 x 8.0 $mm$
Date begin
2015-10-06

Versions

Release date
2018-02-24 08:23:21 UTC+0000
Version (Date)
#2 (2017-12-12 08:22:38 UTC+0000, Updated: 2020-01-02 06:22:53 UTC+0000)
Older version(s)
Sponsors
  • Programme National de Planétologie (PNP)
  • Centre National d'Etudes Spatiales (CNES) (OMEGA/Mars Express)
