- DOI
- 10.26302/SSHADE/EXPERIMENT_BS_20170830_001
- Data reference

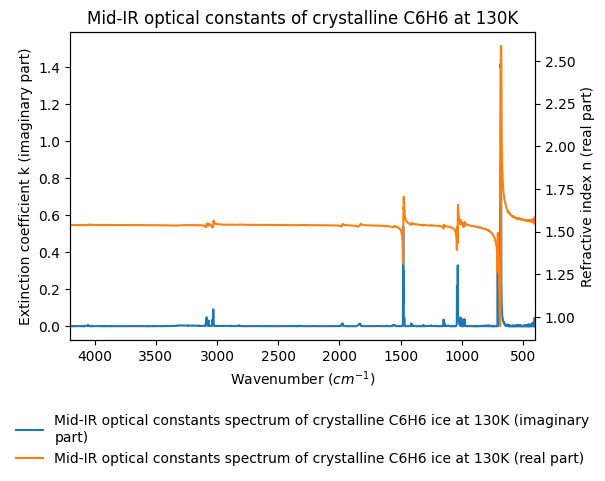

- Schmitt, Bernard (2015): Mid-IR optical constants of crystalline C6H6 at 130K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20170830_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 2
- Variable type(s)
-
- no
- Instrument
- Nicolet 800 – transmission Mid-IR
- Sample holder
- CsI window 2mm thick cooled by He cryostat in UHV chamber with 2 CsI windows 5mm thick
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 400.0 - 4200.0 0.482146 0.96 0.05
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 180.0°
- Azimuth angle
- 0.0°
- Phase angle
- 180.0°
- Resolution illumination
- 15.0°
- Resolution observation
- 20.0°
Illumination
Observation
- Comments
- possibly partly polarized beam by beamsplitter
- Observation mode
- single spot
- Image size
- 8.0 x 8.0 $mm$
- Date begin
- 2015-10-06
Versions
- Version (Date)
- #1 (2017-11-17 17:16:56 UTC+0000, Updated: 2017-12-11 11:31:14 UTC+0000)
- Newer/Last version(s)
- Sponsors
-
- Programme National de Planétologie (PNP)
- Centre National d'Etudes Spatiales (CNES) (OMEGA/Mars Express)
