NIR Optical constants spectra of the $2\nu$ mode of $^{12}CO$ in solid solution in $\beta$-$N_2$ crystal at differents temperatures
Spectra
- NIR Optical constants spectrum of the $2\nu$ mode of $^{12}CO$ (normalized to 100%) in solid solution in $\beta$-$N_2$ crystal at 43 K
- NIR Optical constants spectrum of the $2\nu$ mode of $^{12}CO$ (normalized to 100%) in solid solution in $\beta$-$N_2$ crystal at 41 K
- NIR Optical constants spectrum of the $2\nu$ mode of $^{12}CO$ (normalized to 100%) in solid solution in $\beta$-$N_2$ crystal at 38 K
- NIR Optical constants spectrum of the $2\nu$ mode of $^{12}CO$ (normalized to 100%) in solid solution in $\beta$-$N_2$ crystal at 36.5 K
NIR Optical constants spectra of the $2\nu$ mode of $^{12}CO$ in solid solution in $\alpha$-$N_2$ crystal at differents temperatures
Spectra

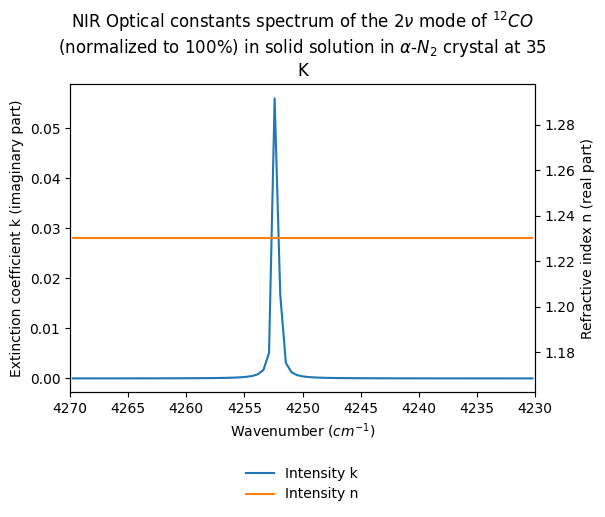

- NIR Optical constants spectrum of the $2\nu$ mode of $^{12}CO$ (normalized to 100%) in solid solution in $\alpha$-$N_2$ crystal at 35 K
- Title
- NIR Optical constants spectrum of the $2\nu$ mode of $^{12}CO$ (normalized to 100%) in solid solution in $\alpha$-$N_2$ crystal at 35 K
- Database
- Spectrum type
- optical constants
- Version
- #1 (2018-02-08 11:18:50)
You can paste the data VOTable URL directly into a VO-compliant software, ie. :
(limited support)
-or-
Use SAMP protocol over TLS:
Notice : This requires SAMP TLS Hub to be launched on your computer. Right-click and save the file, then launch it with the following command :
java -jar tlshub.jar
- Instrument
- Nicolet 800
- Valid spectral range(s)
- 4230.0 - 4270.0 cm-1
- Observation mode
- single spot
- Name
- CO in alpha-N2 crystalline
- Origin
- laboratory
- Texture
- compact crystal
- Thickness
- 1.0 $\pm$ 0.01 $mm$
- Temperature
- 35.0 $\pm$ 0.3 $K$
- Fluid
- Irradiated by
-
- None
