Experiment
Title

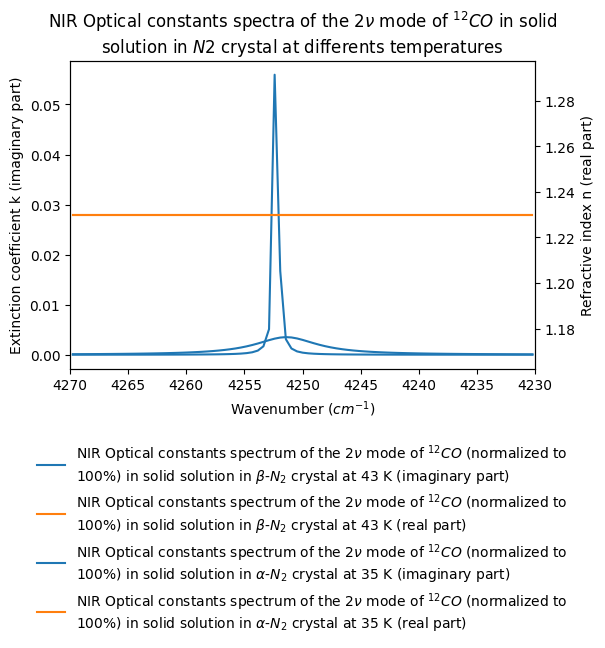

NIR Optical constants spectra of the 2ν mode of 12CO in solid solution in N2 crystal at differents temperatures
DOI
10.26302/SSHADE/EXPERIMENT_BS_20130103_004
Data reference
Quirico, Eric; Schmitt, Bernard (1992): NIR Optical constants spectra of the 2ν mode of 12CO in solid solution in N2 crystal at differents temperatures. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20130103_004
Publications
Type(s)
laboratory measurement
Number of spectra
5
Variable type(s)
  • temperature
  • sample phase
Instrument
Nicolet 800 – transmission Near-IR
Sample holder
Copper closed cell 1 mm thick with Al2O3 windows cooled by He cryostat in UHV chamber with 2 KBr windows
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
NIR
Valid spectral range(s)
Min - Max (cm1) Sampling (cm1) Resolution (cm1) Position accuracy (cm1) Absorption edge
#1 4230.0 - 4270.0 0.482131412701804 0.92 0.05
Comments
data only for the 2ν mode of 12CO
Comments
crystals C axis possibly mostly perpendicular to beam axis
Illumination
Type of polarization
no
Observation
Type of polarization
no
Comments
possibly partly polarized beam by beamsplitter
Observation mode
single spot
Image size
2.0 x 2.0 mm
Spatial resolution
2.0 ± 0.3 mm
Comments
circular spot located in center of a monocrystal
Date begin
1992-01-01

Versions

Release date
2018-02-27 11:43:15+0000 UTC
Version (Date)
#1 (2018-02-27 11:43:15+0000 UTC, Updated: 2018-02-08 11:09:50+0000 UTC)
