Experiment
Title

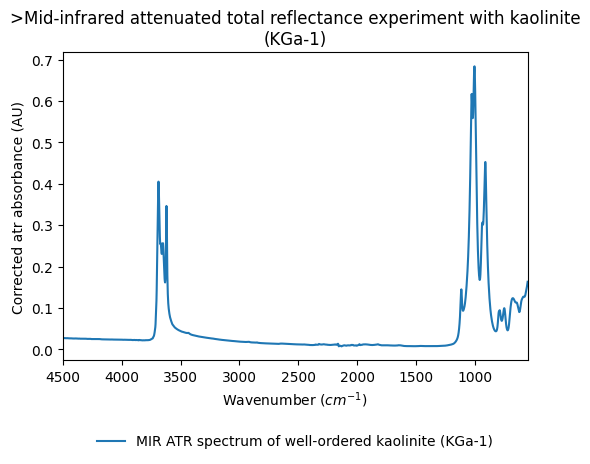

>Mid-infrared attenuated total reflectance experiment with kaolinite (KGa-1)
Data reference
Kuligiewicz, Artur; Derkowski, Arkadiusz (2014): >Mid-infrared attenuated total reflectance experiment with kaolinite (KGa-1). SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data.
Type(s)
laboratory measurement
Number of spectra
1
Variable type(s)
  • no
Instrument
FTIR-ATR-MIR
Sample holder
The ATR accessory with steel anvil - sample in pressed powder form
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 550.0 - 4500.0 1.0 4.0
Observation geometry
specular
Observation mode
fixed angles
Incidence angle
45.0°
Emergence angle
45.0°
Observation mode
single spot
Date begin - end
2014-11-25 - 2014-11-25

Versions

Release date
2019-08-05 09:02:27 UTC+0000
Version (Date)
#2 (2019-08-05 09:02:27 UTC+0000)
Older version(s)
