- DOI
- 10.26302/SSHADE/EXPERIMENT_AK_20141125_1
- Data reference

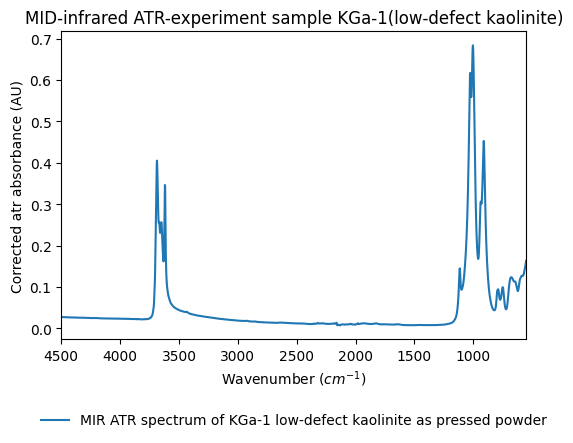

- Kuligiewicz, Artur (2014): MID-infrared ATR-experiment sample KGa-1(low-defect kaolinite). SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_AK_20141125_1
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Variable type(s)
-
- no
- Laboratory
- Clay Minerals Laboratory (CML_IGSPAS)
- Instrument
- FTIR-ATR-MIR
- Sample holder
- The ATR accessory with steel anvil - sample in pressed powder form
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 550.0 - 4500.0 1.0 4.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 45.0°
- Emergence angle
- 45.0°
- Observation mode
- single spot
- Date begin - end
- 2014-11-25 - 2014-11-25
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000)
- Newer/Last version(s)
