- Title

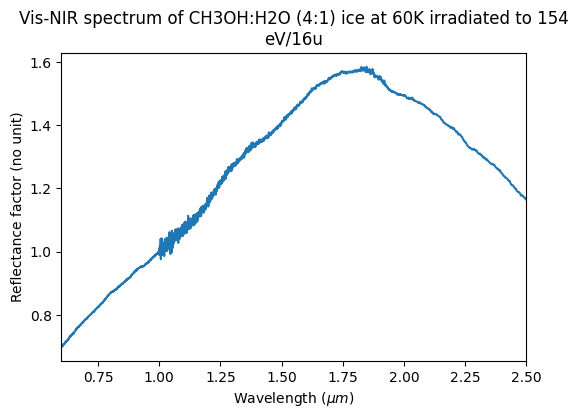

- Vis-NIR spectrum of CH3OH:H2O (4:1) ice at 60K irradiated to 154 eV/16u
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2025-06-09 13:38:34+0000 UTC)
- Instrument
- Bruker Tensor - reflection Near-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1.0 - 2.5 μm
- Observation geometry
- bidirectional : i=10.0° ; e=10.0° ; az=0.0° ; ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- Maya2000 - microscopic reflection Visible-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.6 - 1.0 μm
- Observation geometry
- bidirectional : i=10.0° ; e=10.0° ; az=0.0° ; ph=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- CH3OH:H2O (4:1) ice, ~ 3.6 µm thick deposited at 60K, irradiated with H+ to 154 eV/16u
- Origin
- laboratory
- Texture
- compact glassy
- Thickness
- 3600.0 ± 500.0 nm
- Temperature
- 60.0 ± 0.5 K
- Irradiated by
-
- atomic ions , 30.0 keV.particle−1
References
- Data reference
- Henault, Elsa (2021): Vis-NIR reflectance spectra of CH3OH:H2O mixtures at 35 and 60 K irradiated with H+ 30 keV. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20250609_01
- Publications
