Spectrum preview
Title

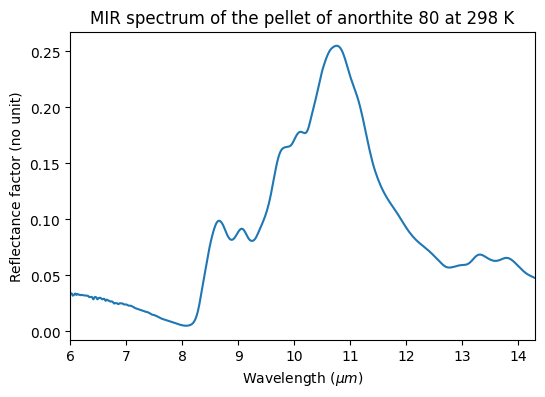

MIR spectrum of the pellet of anorthite 80 at 298 K
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-07-03 19:37:40 UTC+0000)
Instrument parameters
Instrument
SMIS Cary 670 - confocal reflection Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
6.0 - 14.3 ${\mu}m$
Observation geometry
confocal : i=0.0° ; e=0.0° ; az=180.0° ; ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pellet of Anorthite 80 (bytownite)
Texture
compact fine grained
Thickness
1000.0 $\pm$ 100.0 ${\mu}m$
Temperature
298.0 $\pm$ 5.0 $K$
References
Data reference
Bott, Nicolas; Brunetto, Rosario (2023): MIR reflectance spectra of Mercury minerals analogs heated up to 673 K. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20230626_01
